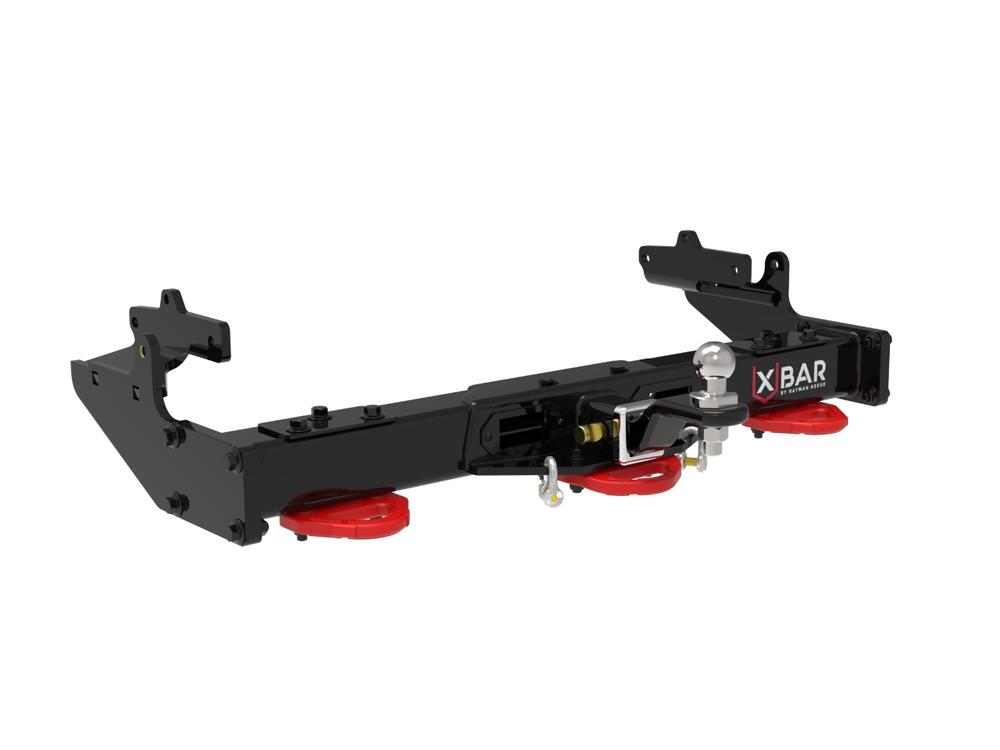

Hayman Reese X-Bar to suit Volkswagen Amarok (2-2011 to 12-2022) - 03298XW

03298XW

Low stock! Only 5 left
$1,449.00
$1,449.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Smart ECU : WLE70004

With a tow capacity of 3500kg and a ball weight of 300kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road

Specifications

Towbar Rating 3500kg
Ball Weight 300kg
Bumper Cut No
Product Weight 57.9kg
Product Dimensions 110 x 34 x 23cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21352
Fitting Difficulty Specialist Installer
ECU WLE70004
Towing Notes Due to the Amarok OEM step design, the Hayman Reese X-Bar will sit lower than OEM towbar solution. Please contact Hayman Reese customer service for Amarok Ute body dimension sheet to assist. SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions.
Wiring Notes Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset.
Towbar Installation Time 90 mins
Wiring Installation Time 30 mins
