03237RW

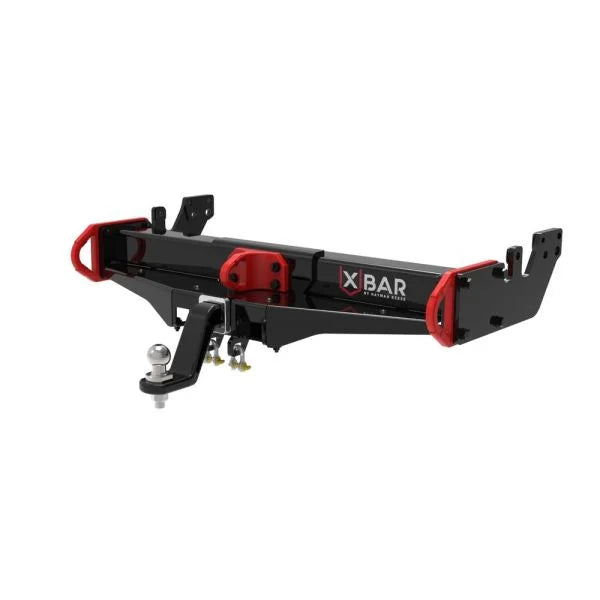

Hayman Reese X-Bar to suit Toyota Land Cruiser 79 Series (8/2012 on) - 03237RW

Low stock! Only 5 left
$1,590.00
$1,590.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 74kg
Product Dimensions 102 x 36 x 20cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
Fitting Difficulty Specialist Installer
ECU Not applicable
Towing Notes Hayman Reese X-BAR
Towbar Installation Time 45 mins
Wiring Installation Time 30 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQN7RUsUHpH0Yfq837IlqAn29wIAHHSWrYORSAS9Uxqgc
