03236RW

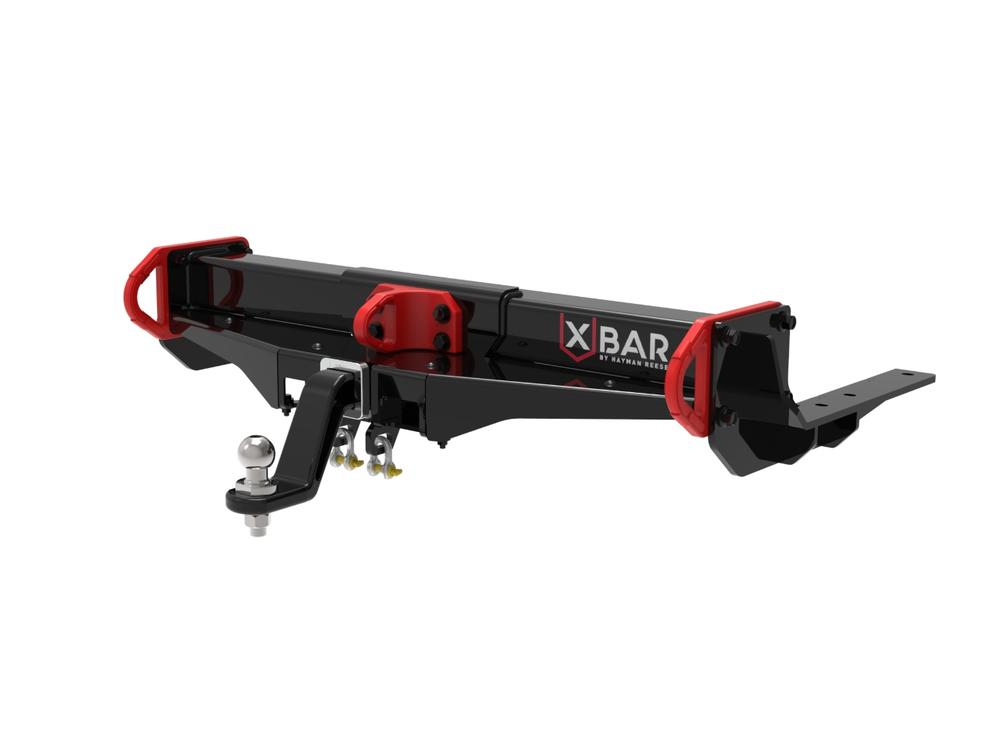

Hayman Reese X-Bar to suit Nissan Patrol C-C (5-1998 to 4-2016) - 03236RW

Low stock! Only 5 left
$1,590.00
$1,590.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

With a tow capacity of 3200kg and a ball weight of 320kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road

Specifications

Towbar Rating 3200kg
Ball Weight 320kg
Bumper Cut No
Product Weight 74.3kg
Product Dimensions 102 x 36 x 20cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Number plate location may be obscured if on original cross bar location. Mounting to tray may be required. Suits leaf variant only.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
Fitting Difficulty Specialist Installer
ECU Not applicable
Towing Notes Hayman Reese X-BAR. Number plate location may be obscured if on original cross bar location. Mounting to tray may be required. Suits leaf variant only.
Towbar Installation Time 90 mins
Wiring Installation Time 30 mins



Fitting Instructions

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQGDhakswwJgCPrEe8XfNjWFiqZGngAsHhwWFq299hMTK

Hayman Reese X-Bar to suit Nissan Patrol C-C (5-1998 to 4-2016) - 03236RW

$1,590.00
