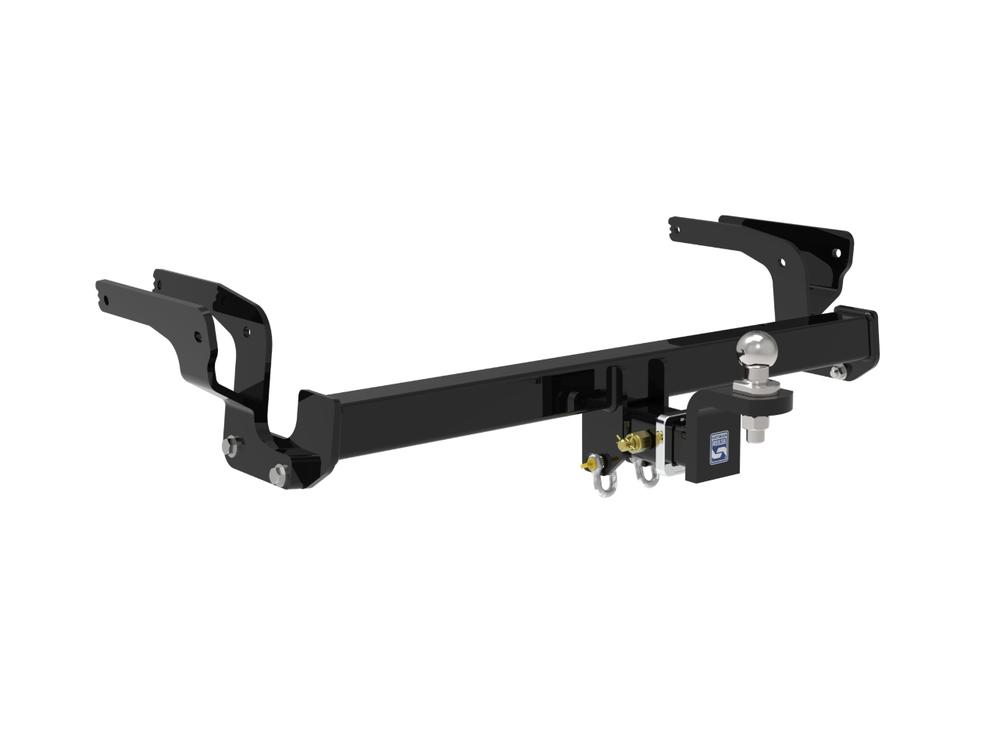

Toyota Rav4 Towbar Hayman Reese (1-2019 on) - 03311RW

03311RW

Low stock! Only 5 left
$799.00
$799.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : 04826

With a tow capacity of 1500kg and a ball weight of 150kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1500kg
Ball Weight 150kg
Bumper Cut Yes
Product Weight 28.48kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Towbar rating dependant on vehicle variant. 1500kg only available on AWD models. Fits Hybrid Models.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21205
Fitting Difficulty Specialist Installer
ECU 04826
Towing Notes Towbar rating dependant on vehicle variant. 1500kg only available on AWD models. Fits Hybrid Models.
Towbar Installation Time 50 mins
Wiring Installation Time 30 mins
