03067RW

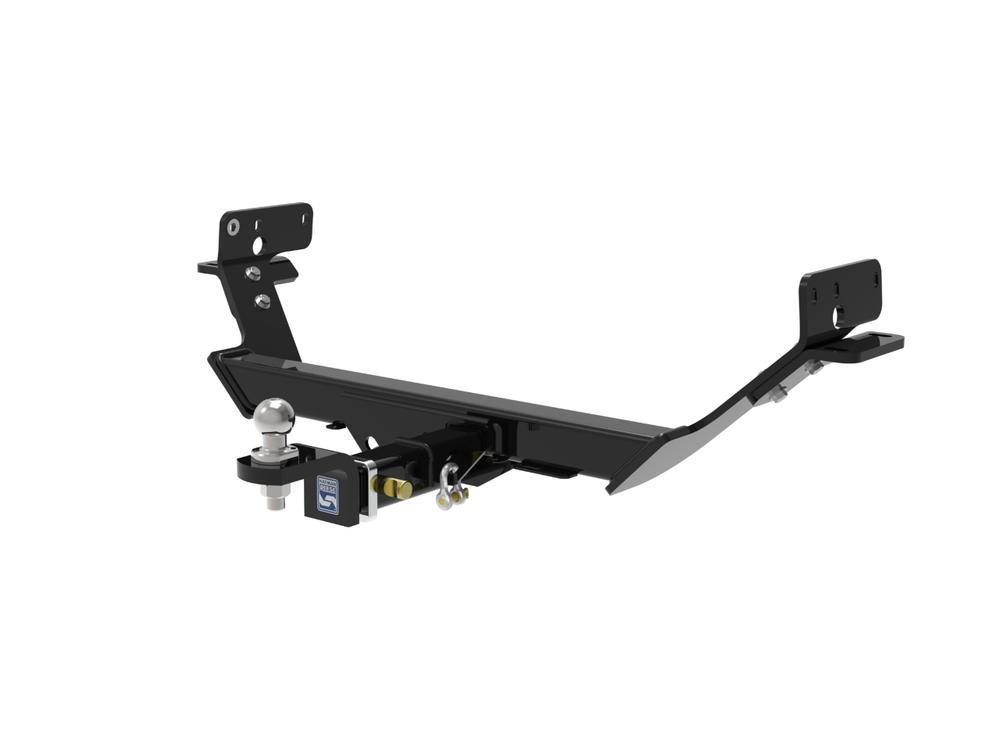

Toyota Hiace Towbar Hayman Reese 2D Van (4-2005 to 2-2019) - 03067RW

Low stock! Only 5 left
$889.00
$889.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : N/A

CHECK NOTES : 04848, 08360

With a tow capacity of 1400kg and a ball weight of 140kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1400kg
Ball Weight 140kg
Bumper Cut Yes
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Supersedes 02077RW. Optional bolt on step and lamp protector # 08284 can be used on this towbar - Please note new fit kit 08360 must also be used. Reverse Park Assist (RPA) Override Switch Part No: 04848 (If Fitted).
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21126
Fitting Difficulty Specialist Installer
ECU Not Required
Towing Notes Supersedes 02077RW.
Wiring Notes RPA Override Switch Part No: 04848 (If Fitted)
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins
