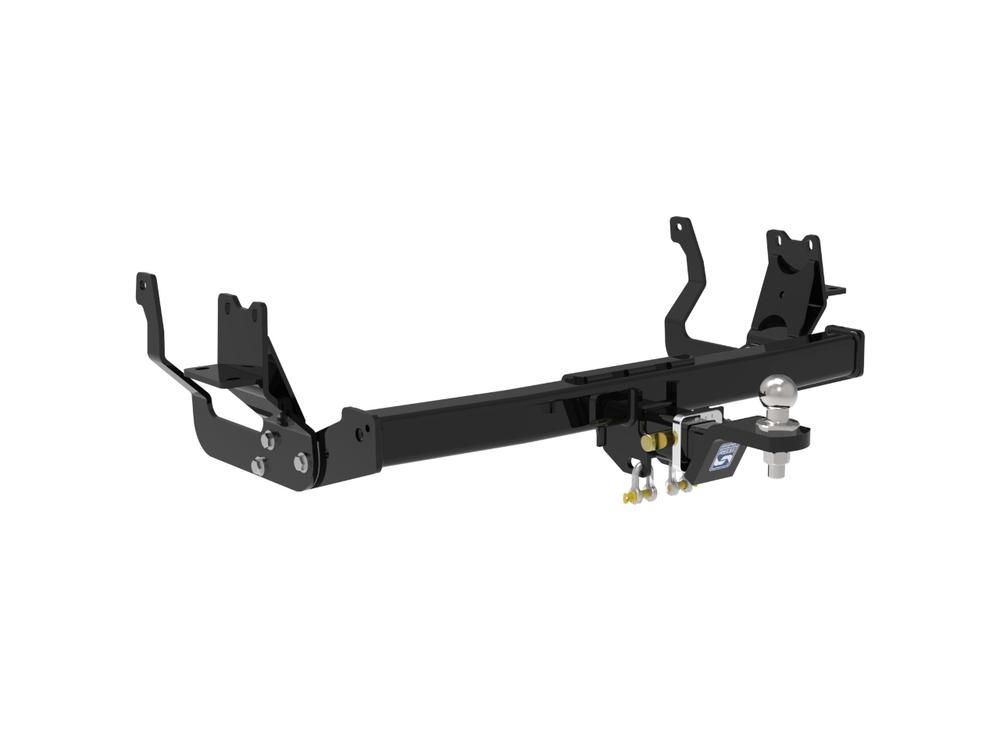

Toyota Hiace Towbar Hayman Reese (2-2019 on) - 03305RW

03305RW

Low stock! Only 5 left
$949.00
$949.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : 04837

With a tow capacity of 1900kg and a ball weight of 190kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1900kg
Ball Weight 190kg
Bumper Cut Yes
Product Weight 34.44kg
Product Dimensions 115 x 50 x 25cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Suits new model HiAce van LWB & SLWB variants
Tail Length 400mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21331
Fitting Difficulty Specialist Installer
ECU 04837
Towing Notes Suits new model HiAce van LWB & SLWB variants.
Towbar Installation Time 45 mins
Wiring Installation Time 40 mins
