03069W

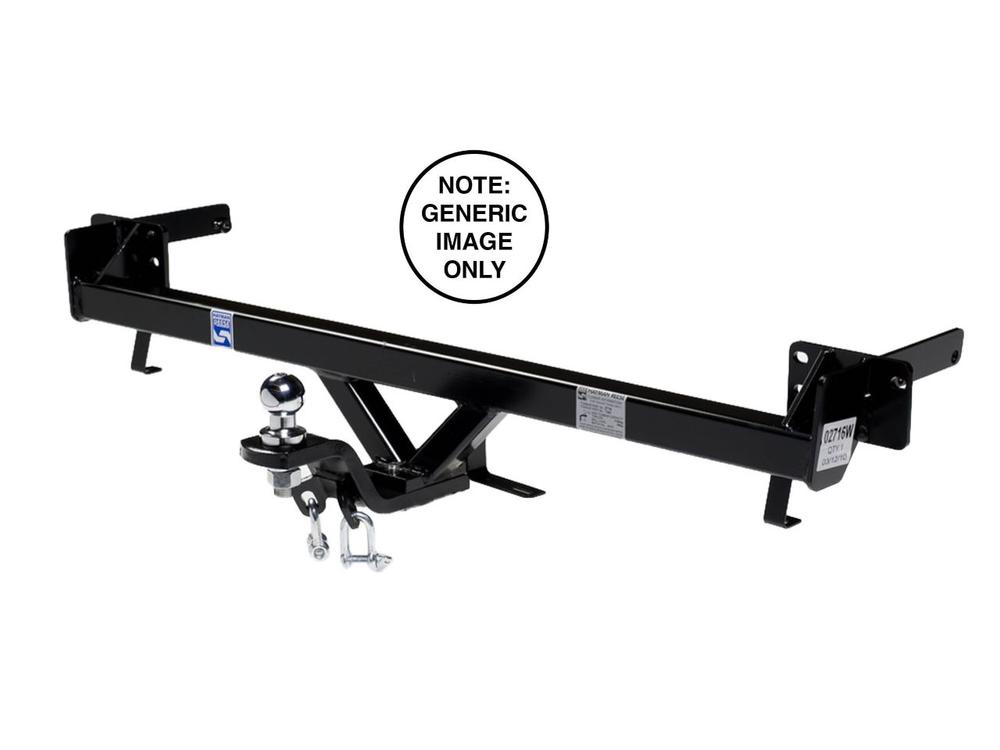

Toyota Hiace LWB Towbar Hayman Reese (4-2005 to 2-2019) - 03069W

Low stock! Only 5 left
$709.00
$709.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 2

ECU REQUIRED : N/A

CHECK NOTES : 04848

The light duty towbar is rated up to 1000kg and a ball weight of 100kg and is a designed for light towing and mounting bike racks. This towbar has an exposed design and doesn't require a bumper cut. The towbar comes with a standard bolt on tongue with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1000kg
Ball Weight 100kg
Bumper Cut No
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Supersedes 02076W. Reverse Park Assist (RPA) Override Switch Part No: 04848 (If Fitted).
Tail Length 1200mm
Colour black
Hitch Type Bolt-on Tongue
Exposed/Concealed Fitment Exposed
LUG A07587
Fitting Difficulty Specialist Installer
ECU Not Required
Towing Notes Supersedes 02076W.
Wiring Notes RPA Override Switch Part No: 04848 (If Fitted).
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins
Toyota Hiace LWB Towbar Hayman Reese (4-2005 to 2-2019) - 03069W

$709.00
