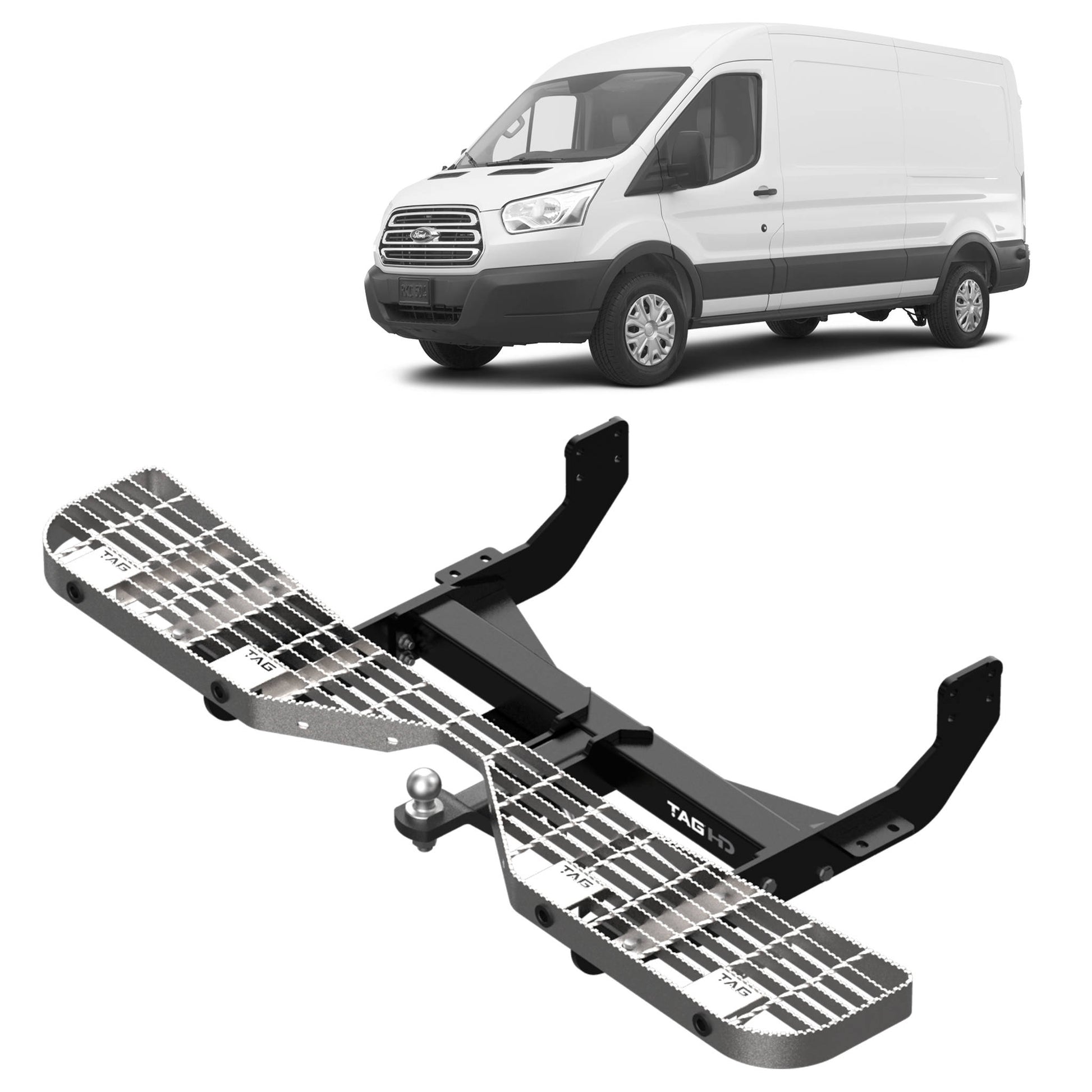

Ford Transit Van VO Series (02/2014 - 05/2016) - TAG Rear Step, Towbar & Wiring Kit

Premium Powder coated 3-Piece Heavy Duty Towbar Rear step Combination

Wiring in this kit will only suit early models with green CAN Connector.

This Kit Includes:

• TAG Heavy Duty 3-Piece Towbar

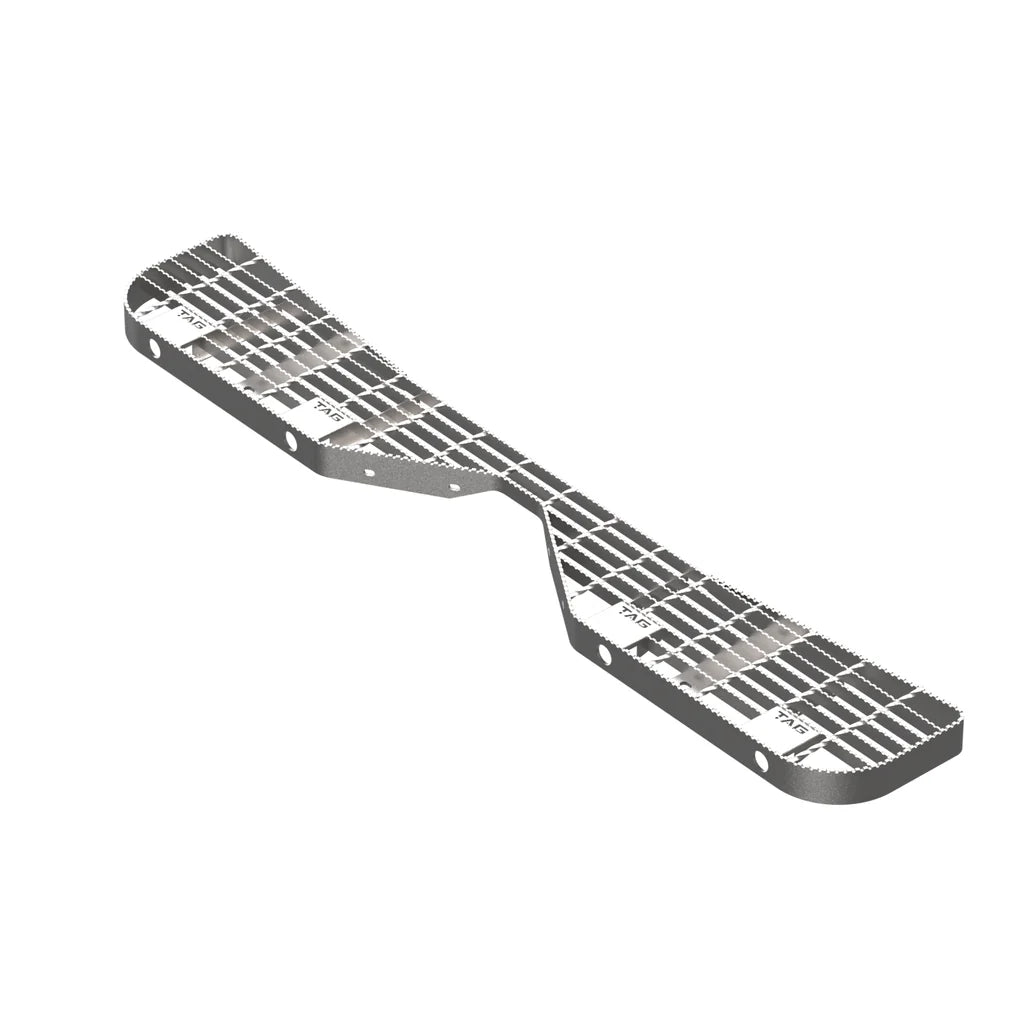

• TAG Galvanised Rear Step

• Sensor Bracket kit

• BRINK TAG Direct Fit CANbus Wiring Harness with 7 Pin Flat plug

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

• 3-Piece Design for easier installation

• Class 4 Towbar - 50mm Square Hitch Receiver

• Durable Powder Coated Finish

• TAG Limited Lifetime Warranty

• Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

• Coating: Galvanised (TRS002)
• Coating: Powder Coated (T7F781)
• Diagnostic Coding: Not Required
• Plug Connection: 7 Pin Flat Socket
• Wiring Option: Direct Fit CAN-Bus Harness suits Vehicles with Green CAN Connector
• Fog Cut Off: Automatic
• Reverse Sensor Cut Off: Via Coding
• Fitting Time [min.]: 120 (BR-712145)
• Fitting Time [min.]: 60 (T7F781)
• Towbar Combination: Rear Step & Towbar
• Towbar Class: Heavy Duty (3-Piece Design)
• Towbar Capacity [kg]: 3500
• Hitch Type: Heavy Duty 50mm Square
• Tow Ball Mount: L4045
• Bumper Removed During Fitment: No
• Bumper Cut Out Required: No
• Exposure: Exposed
• Static Load Capacity [kg]: 250
• Ball Weight [kg]: 300

Ford Transit (02/2014 - 05/2016)
