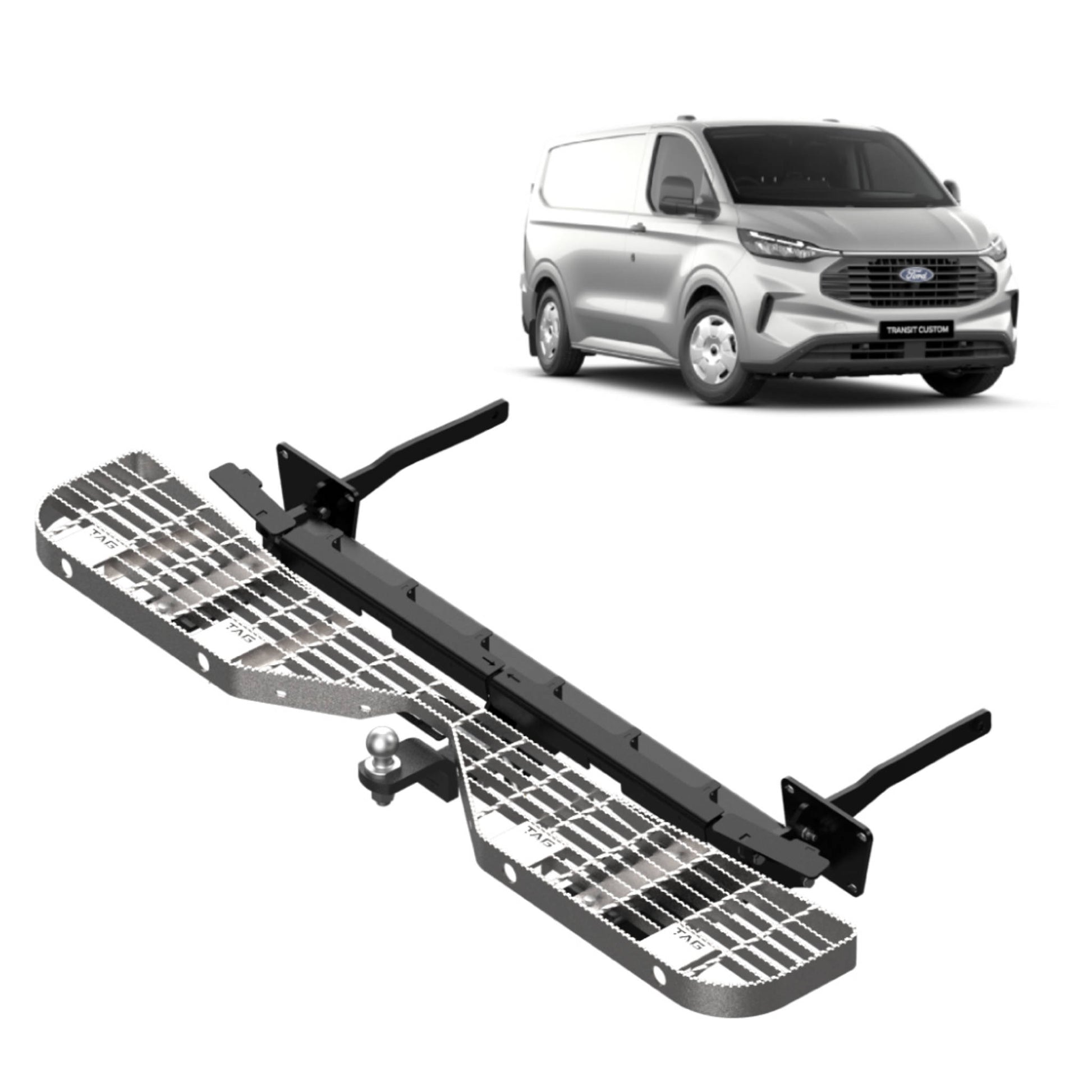

Ford Transit Custom AV (07/23 - ON) | TAG Rear Step, Towbar & Wiring Kit

T8F875-K112

Low stock! Only 1 left
$1,819.00
$1,819.00 $2,041.14
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Up to 11% off

This Kit Includes:

TAG Heavy Duty 3-Piece Towbar

TAG Galvanised Rear Step

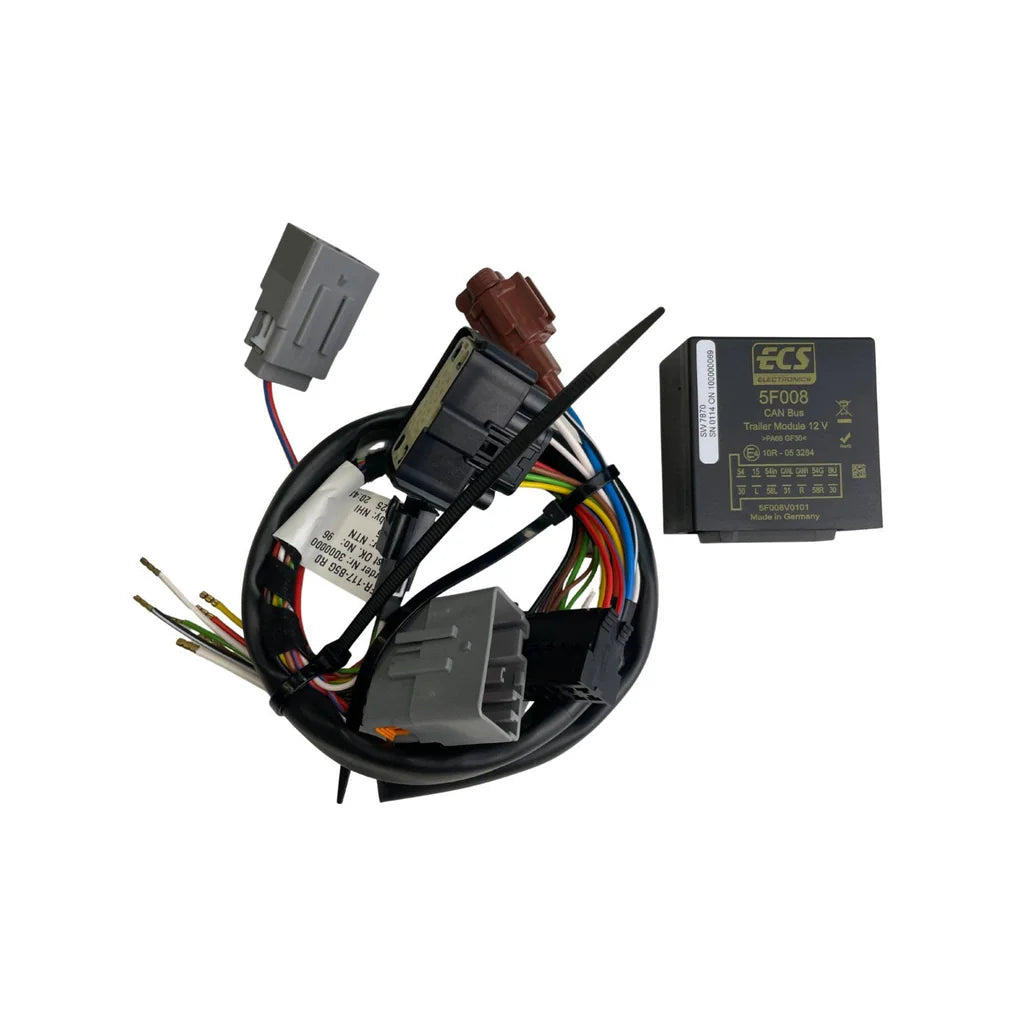

TAG Direct Fit Wiring Harness

TAG 7 Pin Flat Socket - Vehicle Side

TAG Sensor Bracket Kit

TAG Reverse Park Sensor Extender Plugs

Engineered for precision fitment and durability, the TAG Rear Step and Rear Step & Towbar combinations deliver long-lasting, reliable support to transport and trade fleet vehicles.

Galvanised Rear Step

Powder coated towbar and brackets

Towbar utilises factory mounting points for ease of fitment

50mm Square Hitch Receiver

TAG Limited Lifetime Warranty

Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

______________________________________________________________________________________________

  • Coating: Galvanised (TRS002)
  • Coating: Powder Coated (T8F875)
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Diagnostic Coding: Optional
  • Fitting Time [min.]: 60 (BR-712485)
  • Fitting Time [min.]: 90 (T8F875)
  • Reverse Sensor Cut-Off: Automatic
  • Wiring Type: Direct Fit
  • Includes Trailer Plug: No
  • Reed Switch: Normally Closed Circuit
  • Brake Controller Prep: Yes
  • CAN Bus Support: yes
  • Towbar Class: Heavy Duty (3-Piece Design)
  • Towbar Combination: Rear Step & Towbar
  • Towbar Capacity [kg]: 2500
  • Ball Weight [kg]: 200
  • Static Load Capacity [kg]: 250
  • Tow Ball Mount: L4180
  • Hitch Type: 50mm Square Hitch Receiver
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: Yes
  • Exposure: Exposed
Ford Transit Custom (07/2023 - on)
Make Model From To Body Series Engine Variant Drivetrain
FORD TRANSIT CUSTOM 02/2024 - Van . 2.0L | Diesel 300L Automatic FWD
FORD TRANSIT CUSTOM 08/2023 - Van AV DC | 2.0L | Diesel TDCi FWD
FORD TRANSIT CUSTOM 07/2023 - Van RXXTA 2.0L | Diesel 320L Automatic FWD
FORD TRANSIT CUSTOM 07/2023 - Van RXXTA 2.0L | Diesel 320S Automatic FWD
Ford Tourneo (05/2024 - on)
Make Model From To Body Series Engine Variant Drivetrain
FORD TOURNEO 05/2024 - Bus AV DC | 2.0L | Diesel TDCi FWD
Volkswagen Transporter (07/2024 - on)
Make Model From To Body Series Engine Variant Drivetrain
VOLKSWAGEN TRANSPORTER 02/2025 - Van T7 2.0L Turbo Diesel | 2.0L | Diesel TDI390 Lite SWB Automatic FWD
VOLKSWAGEN TRANSPORTER 02/2025 - Van T7 2.0L Turbo Diesel | 2.0L | Diesel TDI390 LWB Automatic FWD
VOLKSWAGEN TRANSPORTER 02/2025 - Van T7 2.0L Turbo Diesel | 2.0L | Diesel TDI390 LWB 4MOTION Automatic 4WD
VOLKSWAGEN TRANSPORTER 02/2025 - Van T7 2.0L Turbo Diesel | 2.0L | Diesel TDI390 SWB Automatic FWD
VOLKSWAGEN TRANSPORTER 02/2025 - Van T7 2.0L Turbo Diesel | 2.0L | Diesel TDI390 SWB 4MOTION Automatic 4WD
VOLKSWAGEN TRANSPORTER 07/2024 - Van TWD, TWE, TWM, TWN, TWV, TWW EECA(ELRA) | Electric e-Transporter RWD
VOLKSWAGEN TRANSPORTER 07/2024 - Van TVD, TVE, TVM, TVN, TVV, TVW DZJA(BKAA) | 2.0L | Diesel TDI AWD
VOLKSWAGEN TRANSPORTER 07/2024 - Van TVD, TVE, TVM, TVN, TVV, TVW DZJA(BKFA) | 2.0L | Diesel TDI FWD
