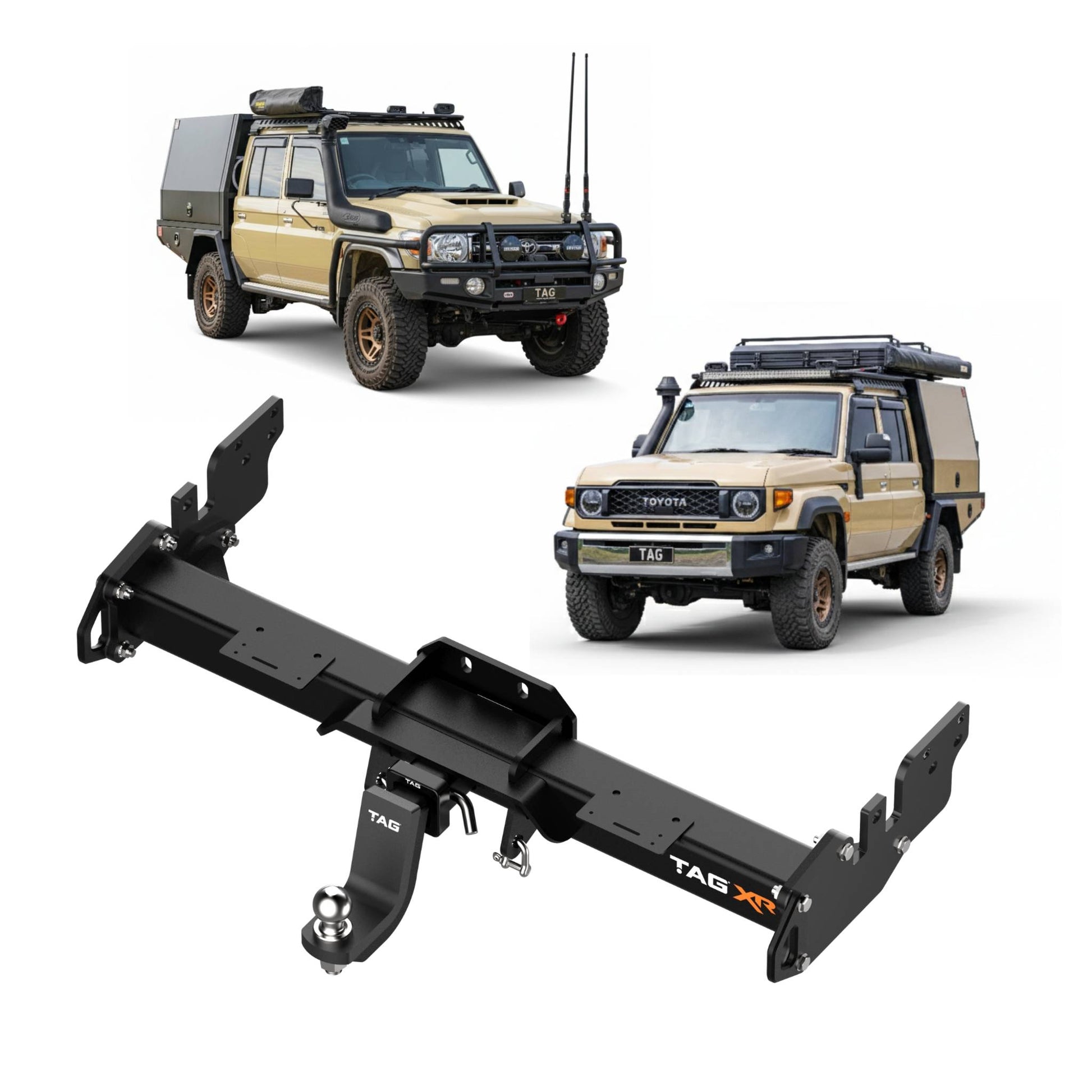

Toyota Landcruiser 75/79 Series | TAG Extreme Recovery Towbar & Direct Fit Wiring Kit

Will Fit Facelift Model. #To achieve full Towing Capacity of 4500kg/450kg you need to purchase a higher rated hitch and Tow Ball (eg. UNTTBM450, 45969-85-70, 70mm Tow Ball). Please check your vehicle owners manual as additional pre-registration modifications are required to legally tow 4500kg.

Suits single and double cab vehicles including the face lifted models.

This Kit Includes:

• TAG 4x4 Recovery Towbar
• TAG Direct Fit Wiring Harness
• TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications and adventurous offroaders alike needing to get themselves and their convoy out of the most challenging recovery situations.

79 Series 2012 On: To achieve full Towing Capacity of 4500kg/450kg you need to purchase a higher rated hitch and Tow Ball (eg. UNTTBM450, 45969-85-70, 70mm Tow Ball). Please check your vehicle owners manual as additional pre-registration modifications are required to legally tow 4500kg.

Narrow Nose 79 and 75 Series: Bar is only rated to 3500kg/350kg for these models due to chassis differences.

Featuring:

• Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
• 89mm x 89mm Extreme Duty Reinforced Crossbar
• Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit Soft-Shackles.
• Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
• Highly durable, textured Extreme Duty Powder Coated Finish
• Dual top-mounted Trailer & Anderson Plug Mounts
• Class 4 Towbar - 50mm Square Hitch Receiver
• TAG Limited Lifetime Warranty

______________________________________________________________________________________________

• Style: 7 Pin Flat
• Type: Plugs & Sockets
• Diagnostic Coding: Not Required
• Fog Cut Off: Not Applicable
• Reverse Sensor Cut Off: Not Applicable
• Wiring Option: Direct Fit Wiring Harness
• Fitting Time [min.]: 30 (UNT272)
• Fitting Time [min.]: 120 (TXR793)
• Towbar Capacity [kg]: 4500
• Ball Weight [kg]: 450
• Towbar Class: Heavy Duty (4x4 Recovery)
• Recovery Load-tested: 4500kg WLL
• Recovery Points: 2
• Hitch Type: 50mm Square Hitch Receiver
• Tow Ball Mount: L4171TXR
• Coating: Textured Powder Coated
• Bumper Removed During Fitment: No
• Bumper Cut Out Required: No
• Exposure: Exposed
