Ford Ranger (01/2025 - On) - Styleside Models - TAG Extreme Recovery Towbar and Direct Fit Wiring Harness

Fits Styleside / Tub Body models With Rear Bumper Step. Tag Extreme Recovery towbar kit including Erich Jaeger CAN-Bus Wiring harness with 7-pin trailer plug.

Kit Includes:

• TXR843 Extreme Recovery Towbar

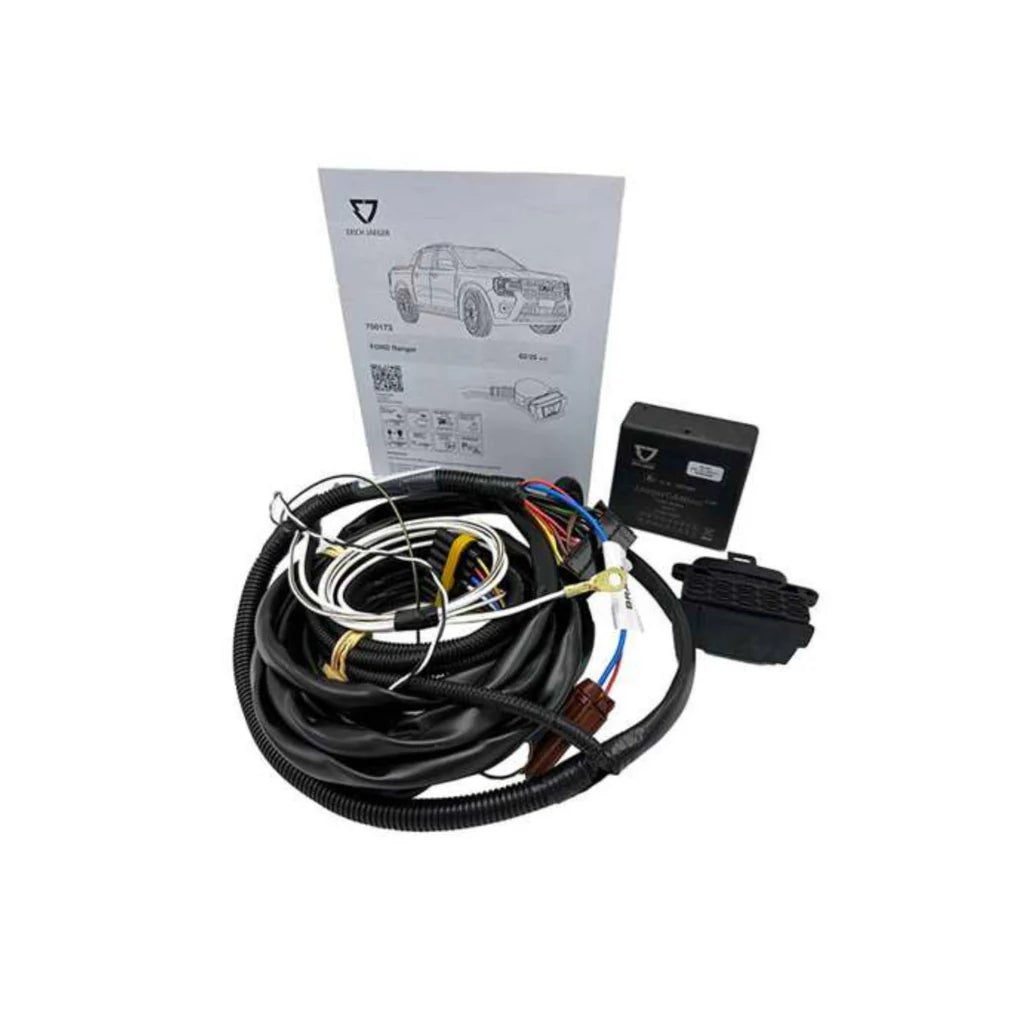

• 750173EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

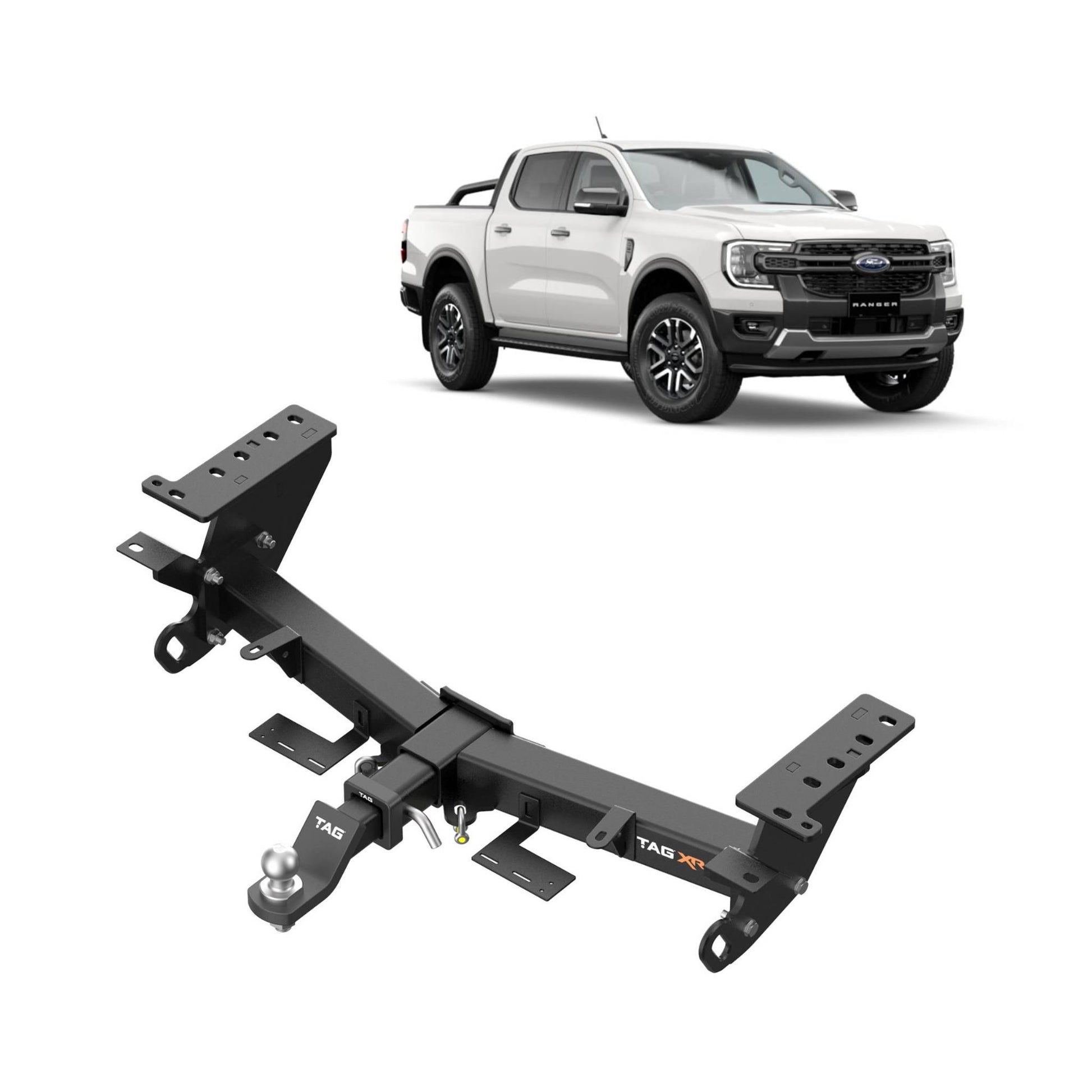

Tag Extreme Recovery Towbar:

• 89mm x 89mm Extreme Duty Reinforced Crossbar

• Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

• Flush chassis-mounted profile for maximum Offroad clearance for improved departure angles.

• Highly durable, textured Extreme Duty Powder Coated Finish

• Dual top-mounted Trailer & Anderson Plug Mounts

• Class 4 Towbar - 50mm Square Hitch Receiver

• TAG Limited Lifetime Warranty

• Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

• Diagnostic Coding: Optional
• Fitting Time [min.]: 90
• Reverse Sensor Cut-Off: Automatic If Coded
• Wiring Type: Direct Fit
• Includes Trailer Plug: Yes
• Brake Controller Prep: Yes
• CAN Bus Support: yes
• Towbar Class: Heavy Duty (4x4 Recovery)
• Towbar Capacity [kg]: 3500
• Recovery Load-tested: 4500kg WLL
• Recovery Points: 2
• Hitch Type: 50mm Square Hitch Receiver
• Tow Ball Mount: L4180TXR
• Coating: Textured Powder Coated
• Bumper Removed During Fitment: Yes
• Bumper Cut Out Required: Yes
• Exposure: Partially concealed
• Ball Weight [kg]: 350
