03310RW

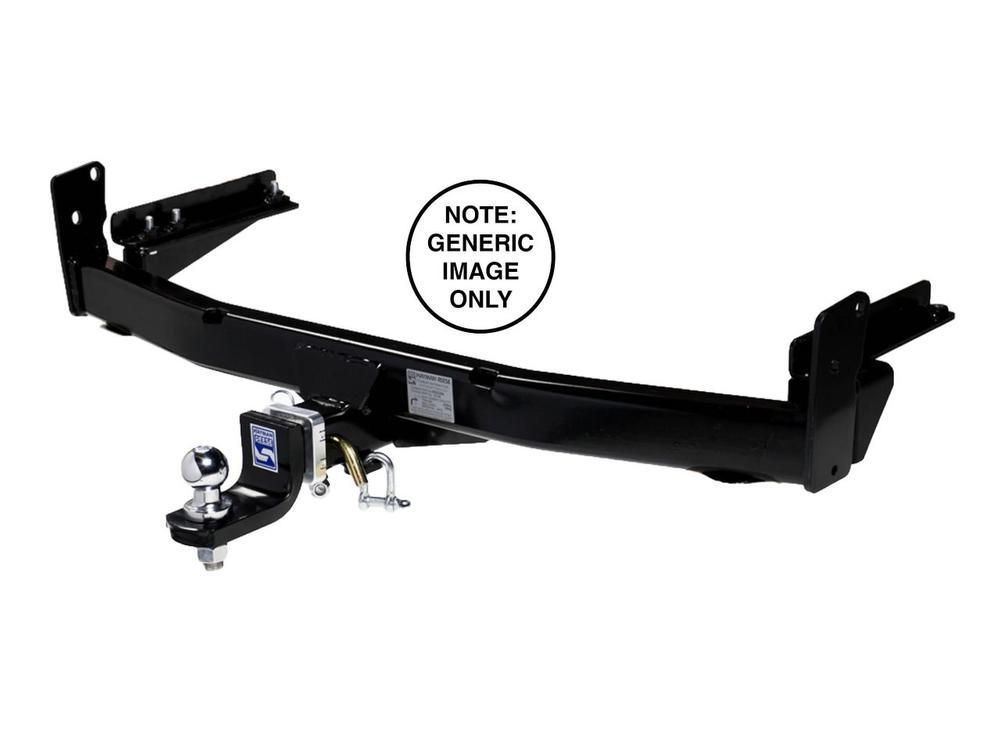

Hayman Reese Towbar to suit Suzuki Vitara (10-2018 on) - 03310RW

Low stock! Only 5 left
$790.00
$790.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

Include optional text to provide more information about this highlight.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : 04826

With a tow capacity of 1200kg and a ball weight of 120kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1200kg
Ball Weight 120kg
Bumper Cut Yes
Product Dimensions 113 x 33 x 29cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Revised towbar and wiring design to support Vitara LY series II variants with bumper mounted rear light.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21232
Fitting Difficulty Specialist Installer
ECU 04826
Towing Notes Revised towbar and wiring design to support Vitara LY series II variants with bumper mounted rear light.
Towbar Installation Time 90 mins
Wiring Installation Time 45 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQHMr902eEQEzCk%2FfcsOH4LcavvCwYrVP%2F4nIQLnO%2BVjv
