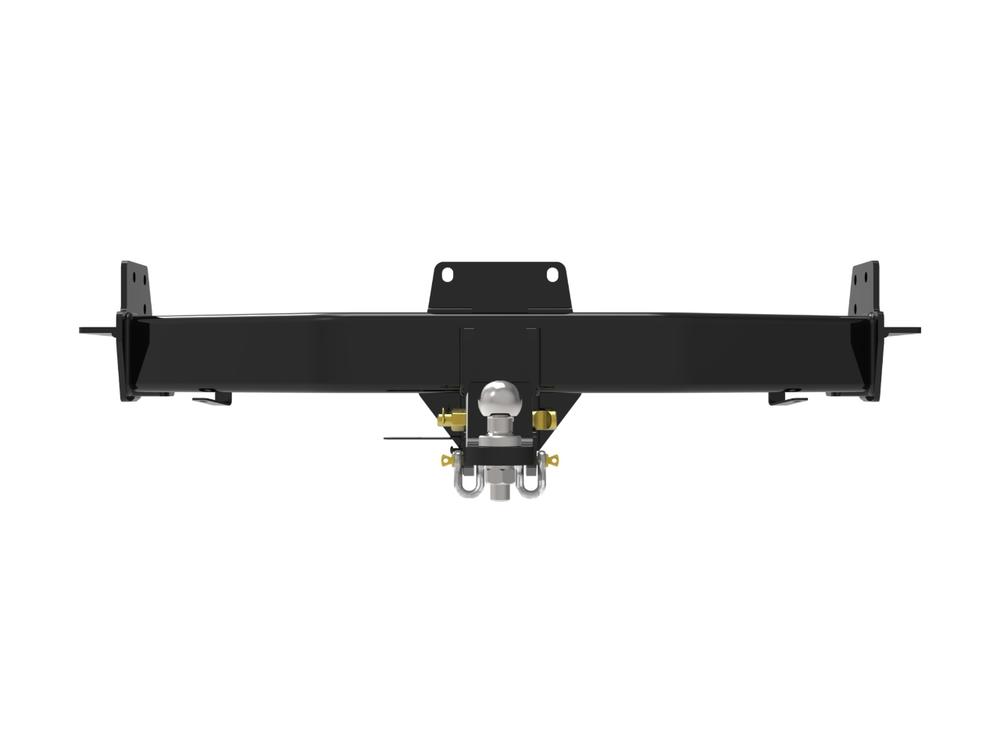

Hayman Reese Towbar to suit ISUZU MU-X (2021-on) - 03396RW

03396RW

Low stock! Only 5 left
$849.00
$849.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

Smart ECU : 04835

CHECK NOTES : 04943

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
Product Weight 32.6kg
Product Dimensions 115 x 50 x 25cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Use tail 04943 to automatically disable Reverse Park Assist (RPA) where fitted.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21201
Fitting Difficulty Specialist Installer
ECU 04835
Wiring Notes Use tail 04943 to automatically disable RPA where fitted.
Towbar Installation Time 60 mins
Wiring Installation Time 60 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQHJNLBSOWBddmXNIpI53pNr8%2FMc9fuqWlMIOvFG0M2B%2F
