03048RW

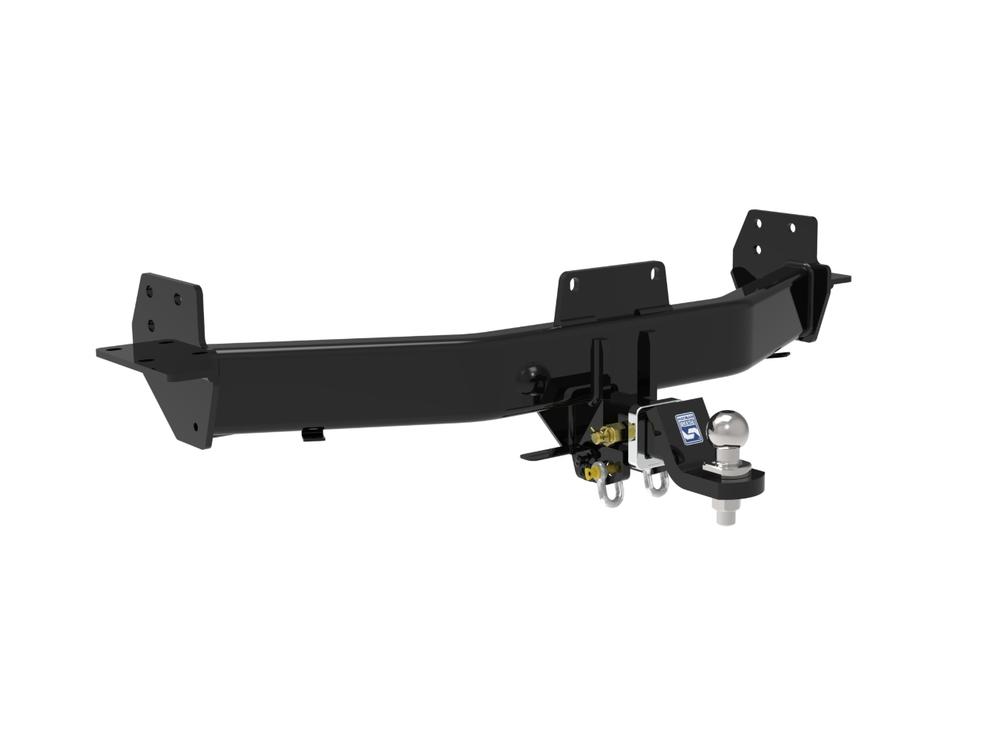

Hayman Reese Towbar to suit Isuzu MU-X (11-2013 to 2-2017) - 03048RW

Low stock! Only 5 left
$719.00
$719.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

With a tow capacity of 3000kg and a ball weight of 300kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The Towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 3000kg
Ball Weight 300kg
Bumper Cut Yes
Product Weight 28.005kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Does not suit MY17 15/02/2017 - ON only due to some bumper differences on certain models.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21247
Fitting Difficulty Specialist Installer
ECU Not Required
Towing Notes Does not suit MY17 15/02/2017 - ON only due to some bumper differences on certain models.
Towbar Installation Time 30 mins
Wiring Installation Time 20 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQCXXJiIqfTv9RL6BA9WLa6y8N5DcJtoG6XQCeysDbvRA
