03457XW

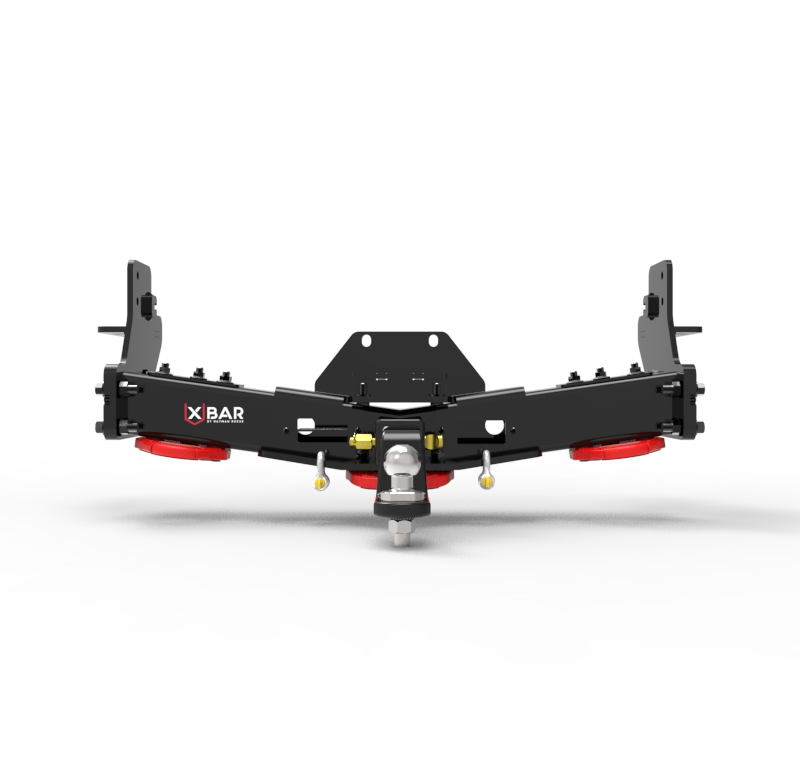

Hayman Reese X-Bar to suit RAM 1500 (10-2020 on) - 03457XW

Low stock! Only 5 left
$1,899.00
$1,899.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

With a tow capacity of 4500kg and a ball weight of 450kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road.

Specifications

Towbar Rating 4500kg
Ball Weight 450kg
Bumper Cut No
Product Weight 72.7kg
Product Dimensions 113 x 33 x 29cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Tail Length 400mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21366
Fitting Difficulty Specialist Installer
ECU Not Applicable
Towing Notes Hayman Reese XBAR to suit RAM DT UTE/Styleside body Towbar complete with forged 21366 Ball mount and 50mm towball. Forged TBM 21361 4500KG rated available seperately.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQKMXEUp%2FpiKrVO4pRvmuxK26R%2FRjXYS99x0EeI0yeaSf

Hayman Reese X-Bar to suit RAM 1500 (10-2020 on) - 03457XW

$1,899.00
