03297XW

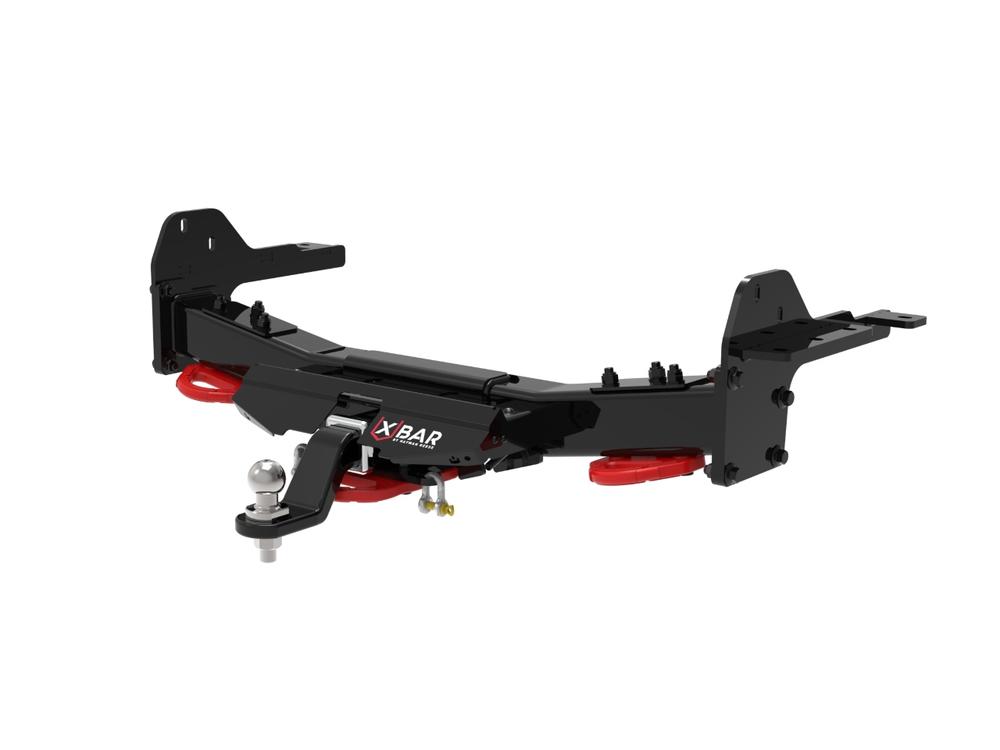

Hayman Reese X-Bar to suit Nissan Navara Ute (3-2015 to 12-2020) - 03297XW

Low stock! Only 5 left
$1,449.00
$1,449.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

ECU REQUIRED : N/A

CHECK NOTES : 04958

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar is designed to complement the vehicle look and feel, and includes twin protected trailer plugs with a quick release cover.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 59.9kg
Product Dimensions 113 x 33 x 29cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes .
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21366
Fitting Difficulty Specialist Installer
ECU Not applicable
Towing Notes Hayman Reese X-BAR UTE
Wiring Notes When 12 PIN trailer socket solution is required part # 04958 (1200MM Tail with right angle wiring exit) provides the best fitting solution in X-Bar housing.
Towbar Installation Time 75 mins
Wiring Installation Time 15 mins
Hayman Reese X-Bar to suit Nissan Navara Ute (3-2015 to 12-2020) - 03297XW

$1,449.00
