03295XW

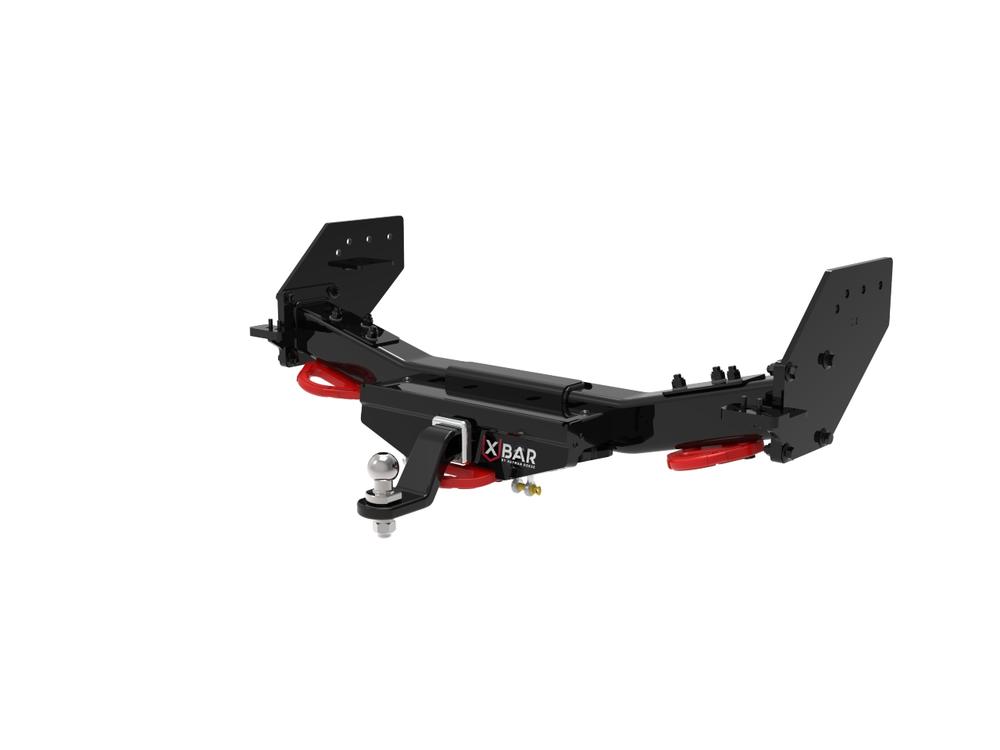

Hayman Reese X-Bar to suit Mitsubishi Triton Ute (5-2015 to 11-2018) - 03295XW

Low stock! Only 5 left
$1,479.00
$1,479.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

With a tow capacity of 3100kg and a ball weight of 310kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar is designed to complement the vehicle look and feel, and includes twin protected trailer plugs with a quick release cover.

Specifications

Towbar Rating 3100kg
Ball Weight 310kg
Bumper Cut No
Product Weight 64.2kg
Product Dimensions 113 x 33 x 29cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21366
Fitting Difficulty Specialist Installer
ECU Not applicable
Towing Notes Hayman Reese X-BAR UTE
Wiring Notes When 12 PIN trailer socket solution is required part # 04958 (1200MM Tail with right angle wiring exit) provides the best fitting solution in X-Bar housing.
Towbar Installation Time 70 mins
Wiring Installation Time 30 mins
