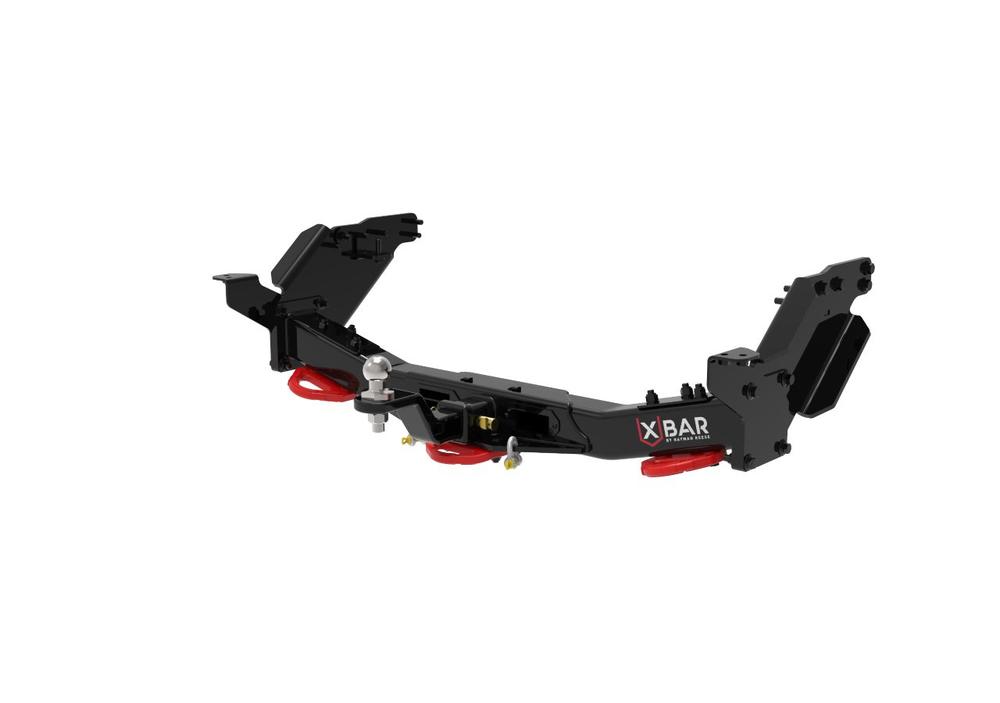

Hayman Reese X-Bar to suit Mitsubishi Triton MV Tub (12-2023 on) - 03497XW

03497XW

Low stock! Only 5 left
$1,379.00
$1,379.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

Suits factory Cab Chassis variants

Smart ECU : 04835

CHECK NOTES : 04983

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 2 rated rear recovery points (2 sides 4,500kg each, and a bridled recovery capacity of  8,000kg). The X-Bar has improved departure angles and protected trailer plug mounting for travelling off-road.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
Product Weight 66.5kg
Product Dimensions 113 x 33 x 29cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Suits factory Cab Chassis variants.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
LUG 21366
Fitting Difficulty Specialist Installer
ECU 04835
Towing Notes 04943 tail must be used for trailer connect. Trailer fuse located in engine bay fuse box F6.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins
