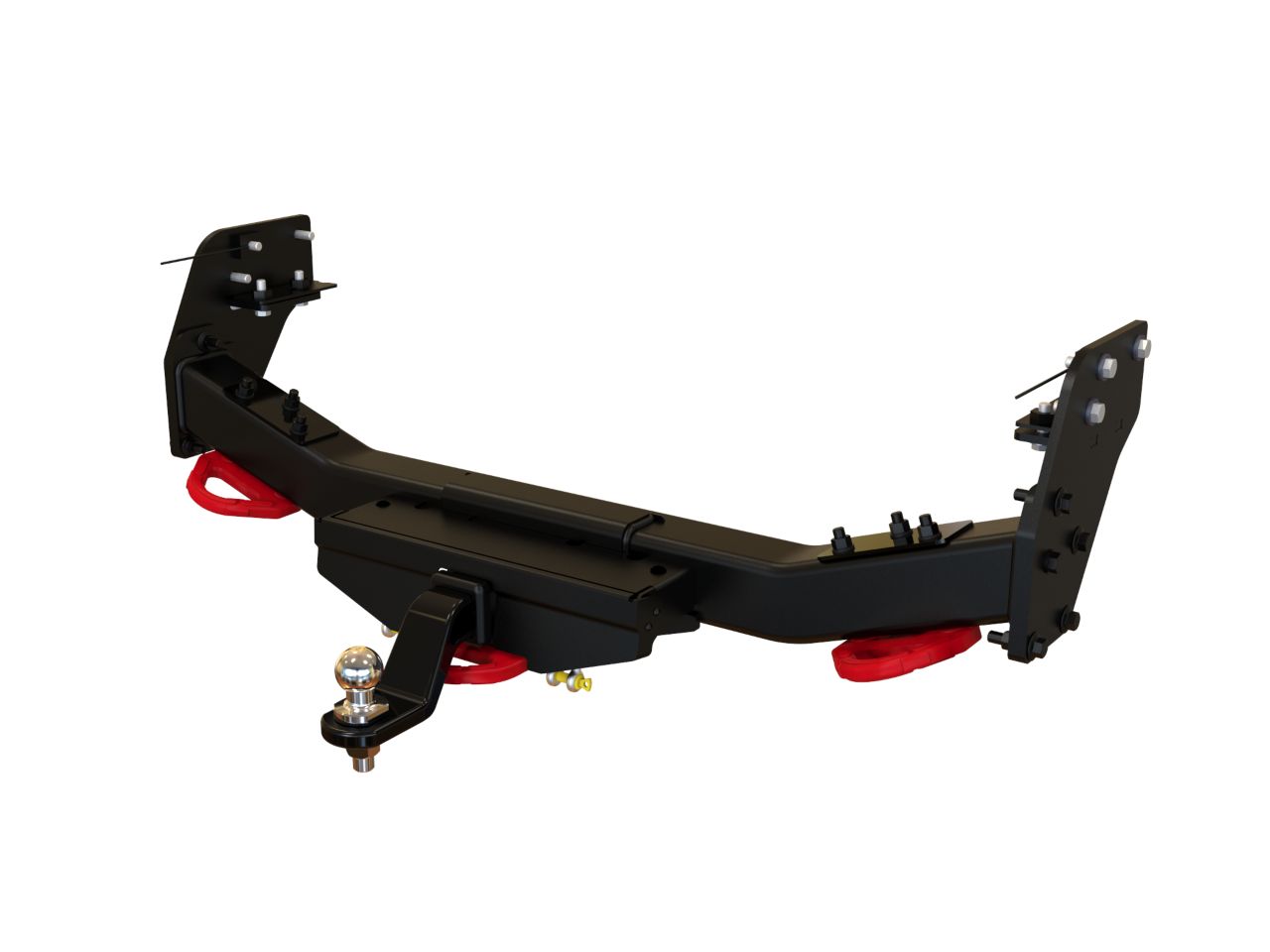

Hayman Reese X-Bar to suit Ford Ranger PX III Ute (8-2015 to 5-2022) - 03294XW

03294XW

Low stock! Only 5 left
$1,490.00
$1,490.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

ECU REQUIRED : WLE70003

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar is designed to complement the vehicle look and feel, and includes twin protected trailer plugs with a quick release cover.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
Product Weight 69kg
Product Dimensions 125 x 50 x 30cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21366
Fitting Difficulty Specialist Installer
ECU WLE70003
Towing Notes Hayman Reese X-BAR to suit UTE body variants of Ford Ranger where rear step is retained. SmartCODE compatible towbar - Vehicle coding must be done using SmartCODE handset.
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS Tool. OEM module must be selected as this ECU replicates the OEM part.
Towbar Installation Time 70 mins
Wiring Installation Time 15 mins



FITTING INSTRUCTIONS
