03565XW

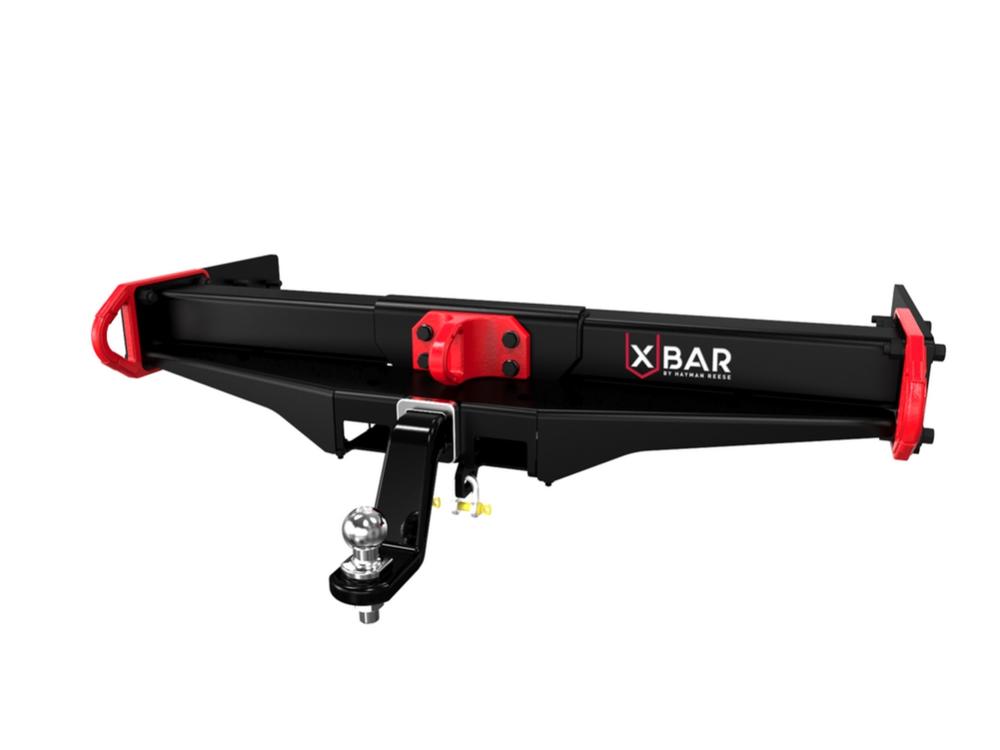

Hayman Reese X-Bar to suit Ford Ranger MY25.25 C-C (11-2024 on) - 03565XW

Low stock! Only 5 left
$1,690.00
$1,690.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

*Suits vehicles with existing Ford tow kit wiring*

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 72kg
Product Dimensions 33 x 113 x 29cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
Fitting Difficulty Specialist Installer
Towbar Installation Time 60 mins
Wiring Installation Time 15 mins



FITTING INSTRUCTIONS
