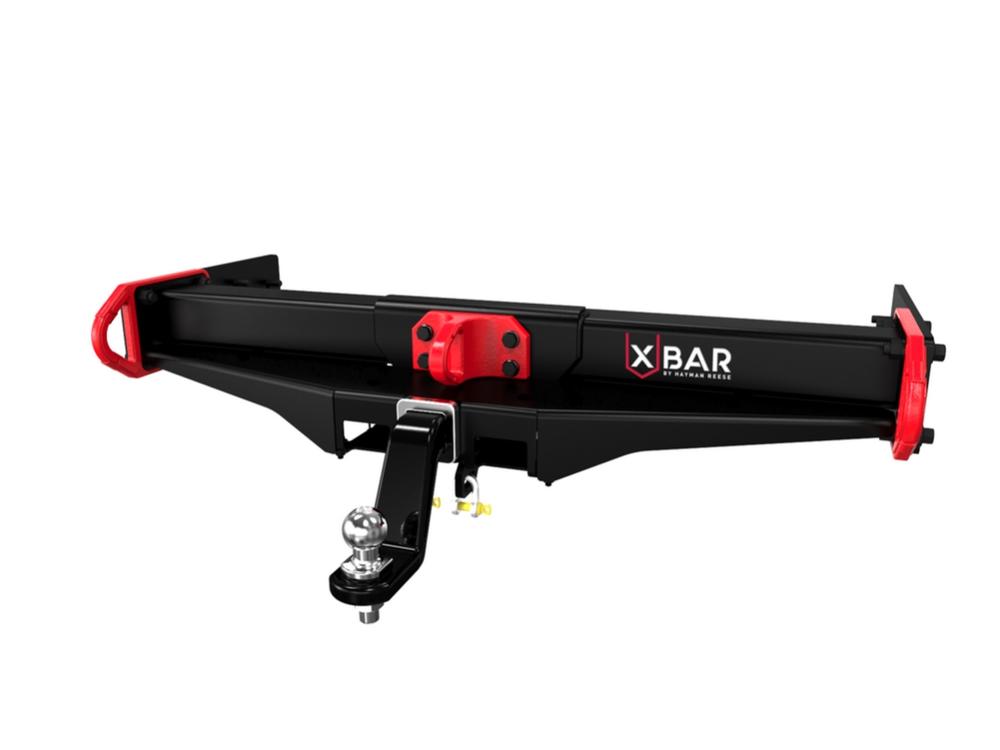

Hayman Reese X-Bar to suit Ford Ranger MY22 Trig Point Cab Chassis (5-2022 to 10-2024) - 03474XW

Low stock! Only 5 left
$1,680.00
$1,680.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

ECU REQUIRED : WLE70029

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 65kg
Product Dimensions 118 x 36 x 20cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 400mm
Colour black
Hitch Type 50mm square hitch receiver
LUG 21359
Fitting Difficulty Specialist Installer
ECU WLE70029
Towing Notes Does not suit MY25.25 onwards Alternative Cab Chassis X-Bar specifically designed to suit Trigpoint body. May suit other C/C Canopy Fitments but is yet to be confirmed.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQIz1EflEcb1W1m9SZDRGoIcyQGHbUk0cVnWQmshuShiQ
