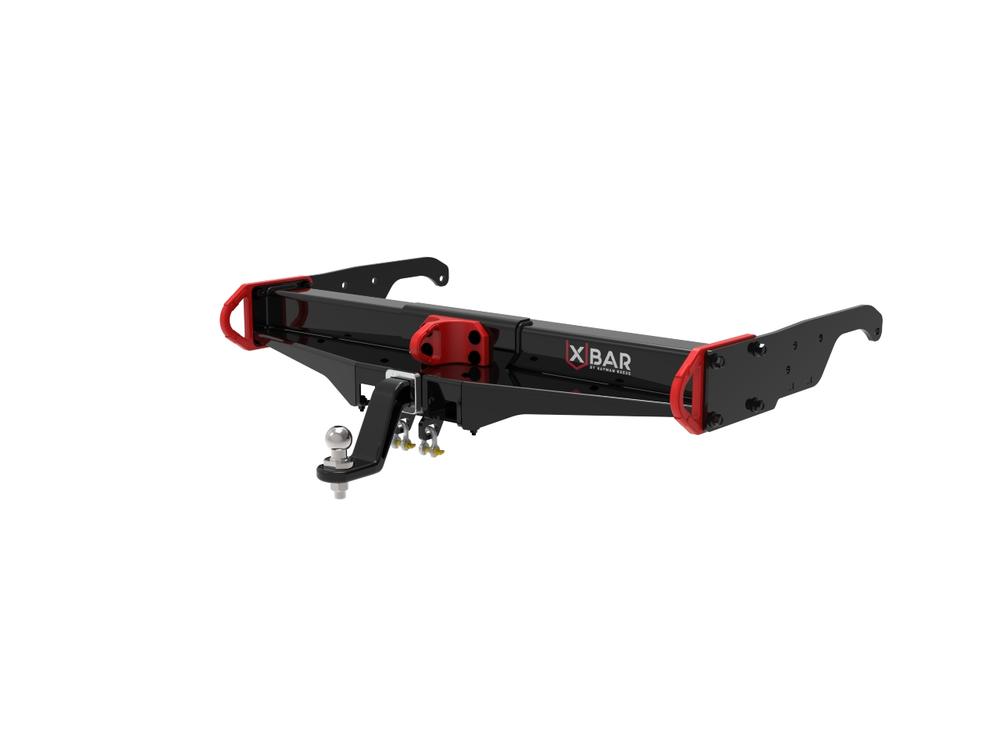

Hayman Reese X-Bar to suit Ford Ranger C-C (5-2022 to 10-2024) - 03428XW

Low stock! Only 5 left
$1,590.00
$1,590.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

ECU REQUIRED : WLE70029

CHECK NOTES

With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 73.8kg
Product Dimensions 33 x 113 x 29cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
Fitting Difficulty Specialist Installer
ECU WLE70029
Towing Notes Does not suit MY25.25 onwards. Suits all new MY22 Ford Ranger Cab Chassis. SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing.
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS tool. When coding, aftermarket AM module must be selected by dealer.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins



FITTING INSTRUCTIONS
