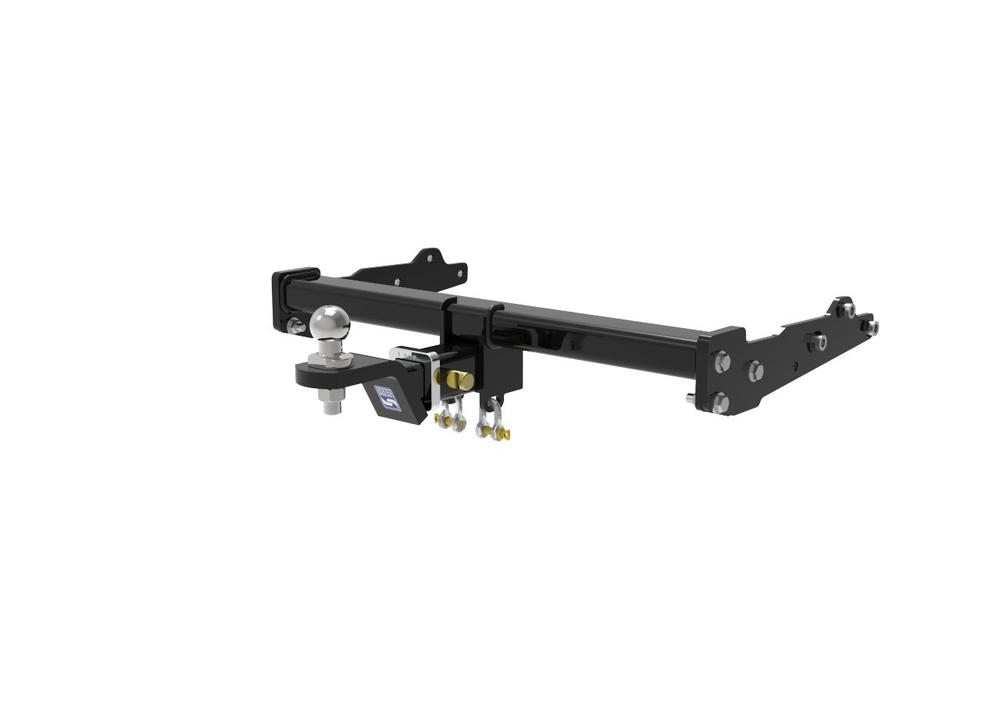

Hayman Reese Towbar to suit VW Transporter, Caravelle & Multivan T6.1 (6-2020 to 12-2024) - 03380RW

Low stock! Only 5 left
$819.00
$819.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

With a tow capacity of 2500kg and a ball weight of 100kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 2500kg
Ball Weight 100kg
Bumper Cut Yes
Product Weight 25.2kg
Product Dimensions 110 x 34 x 22.5cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21325
Fitting Difficulty Specialist Installer
ECU Not applicable
Towing Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions
Wiring Notes ***No ECU Required on this fitment. Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing
Towbar Installation Time 90 mins
Wiring Installation Time 40 mins
