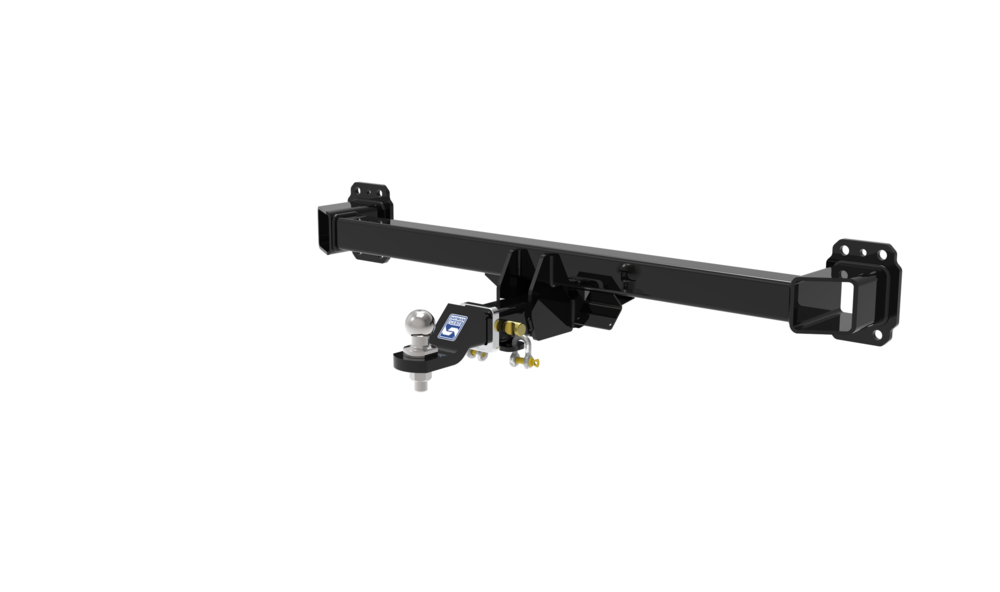

Hayman Reese Towbar to suit Volkswagen Touareg (7-2011 to 1-2019) - 02854RW

02854RW

Low stock! Only 5 left
$1,349.00
$1,349.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU : 04834 to suit 09/2011 - 08/2012 04838 to suit 09/2012 - onwards Factory RPA cannot be overridden but can be disabled via switch on the dash, On some MY18 variants 04834 maybe required when rear parkers on trailer flicker.

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
Product Weight 26kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Diesel & Petrol models. 04834 to suit 09/2011 - 08/2012. 04838 to suit 09/2012 - onwards. Factory RPA cannot be overridden but can be disabled via switch on the dash. On some MY18 variants 04834 maybe required when rear parkers on trailer flicker.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21161
Fitting Difficulty Specialist Installer
ECU 04834/04838
Towing Notes Diesel & Petrol models
Wiring Notes 04834 to suit 09/2011 - 08/2012 04838 to suit 09/2012 - onwards Factory RPA cannot be overridden but can be disabled via switch on the dash, On some MY18 variants 04834 maybe required when rear parkers on trailer flicker.
Towbar Installation Time 30 mins
Wiring Installation Time 50 mins



FITTING INSTRUCTIONS
