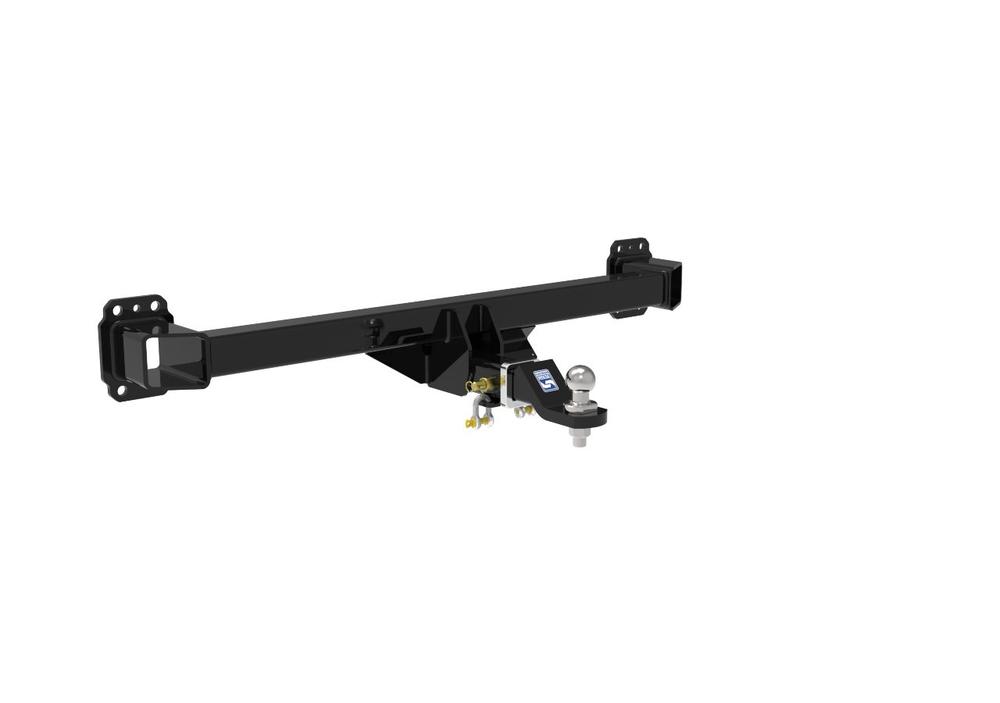

Hayman Reese Towbar to suit Volkswagen Touareg (12-2010 to 11-2018) - 03583RW

Low stock! Only 5 left
$1,549.00
$1,549.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

Smart ECU : WLE70040

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Replaces 02854RW towbar. SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions. Vehicle operators must refer to owners manual to determine exact vehicle changes enabled or disabled when towing.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21161
Fitting Difficulty Specialist Installer
ECU WLE70040
Towbar Installation Time 60 mins
Wiring Installation Time 50 mins



FITTING INSTRUCTIONS
