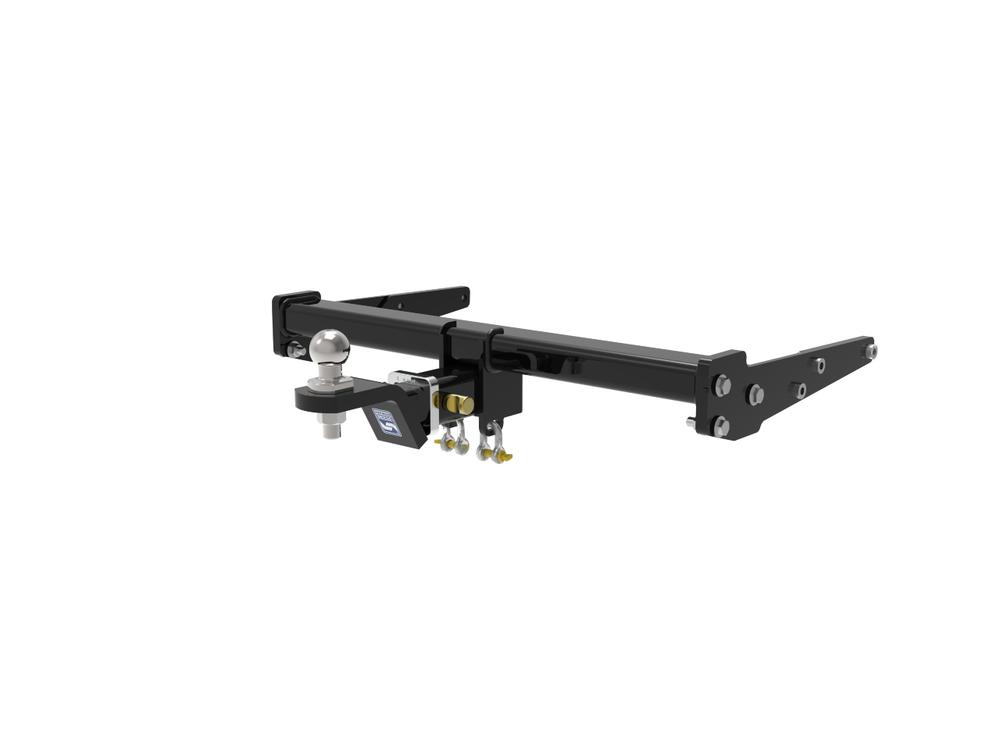

Hayman Reese Towbar to suit Volkswagen Caravelle, Multivan & Transporter (12-2015 to 6-2020) - 03175RW

03175RW

Low stock! Only 5 left
$739.00
$739.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : 04836

CHECK NOTES : 05425

With a tow capacity of 2500kg and a ball weight of 100kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2500kg
Ball Weight 100kg
Bumper Cut Yes
Product Weight 24.9kg
Product Dimensions 110 x 34 x 22.5cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes T6 Transporter requires special tool to Dehouse/rehouse wiring terminals - Use Part # 05425. Tool must suit Audi/Volkswagen JPT type terminals. Compatible with Tech rear step part # 08367 or with HLP kit #08366.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21325
Fitting Difficulty Specialist Installer
ECU 04836
Towing Notes T6 Transporter requires special tool to Dehouse/rehouse wiring terminals - Use Part # 05425 or tools can purchased at various specialty tool shops. Tool must suit Audi/Volkswagen JPT type terminals. Compatible with Technician rear step part # 08367.
Towbar Installation Time 90 mins
Wiring Installation Time 45 mins
