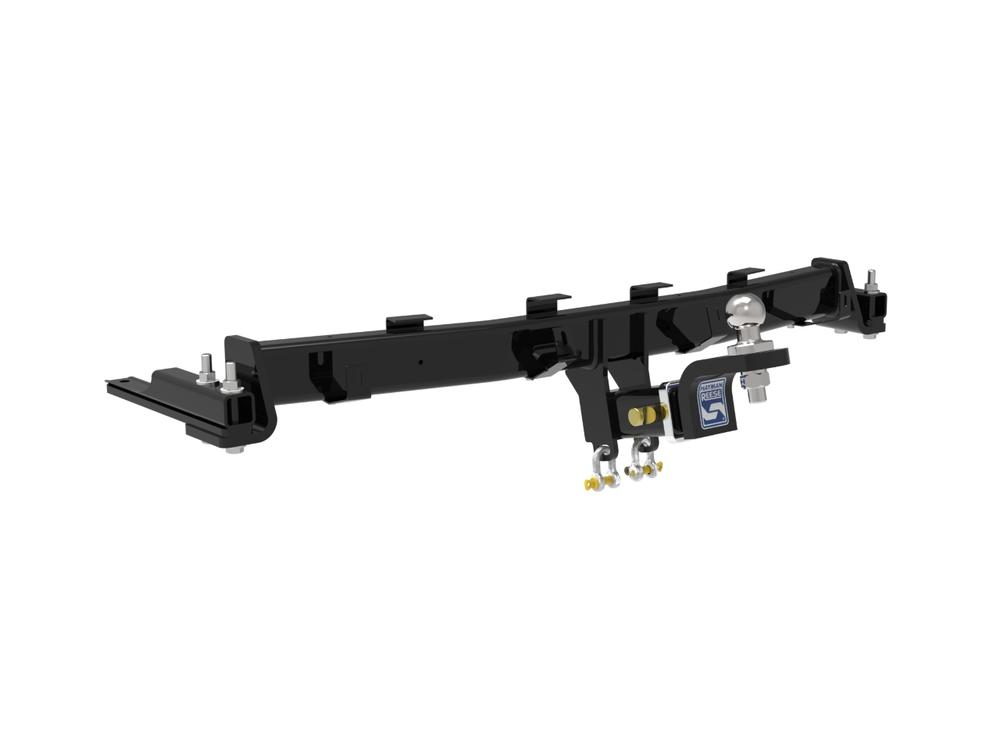

Hayman Reese Towbar to suit Volkswagen Caddy (2-2005 to 3-2021) - 03163RW

03163RW

Low stock! Only 5 left
$749.00
$749.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : 02/2005 - 12/2015 - ECU #04834. 12/2015 - ON - ECU #04836.

With a tow capacity of 1500kg and a ball weight of 100kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 1500kg
Ball Weight 100kg
Bumper Cut Yes
Product Weight 29.8kg
Product Dimensions 120 x 35 x 20cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Replaces 03078RLW. 02/2005 - 12/2015 - ECU #04834. 12/2015 - ON - ECU #04836.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21126
Fitting Difficulty Specialist Installer
ECU 04836/04834
Towing Notes Replaces 03078RLW.
Wiring Notes 02/2005 - 12/2015 - ECU #04834. 12/2015 - ON - ECU #04836.
Towbar Installation Time 45 mins
Wiring Installation Time 45 mins
