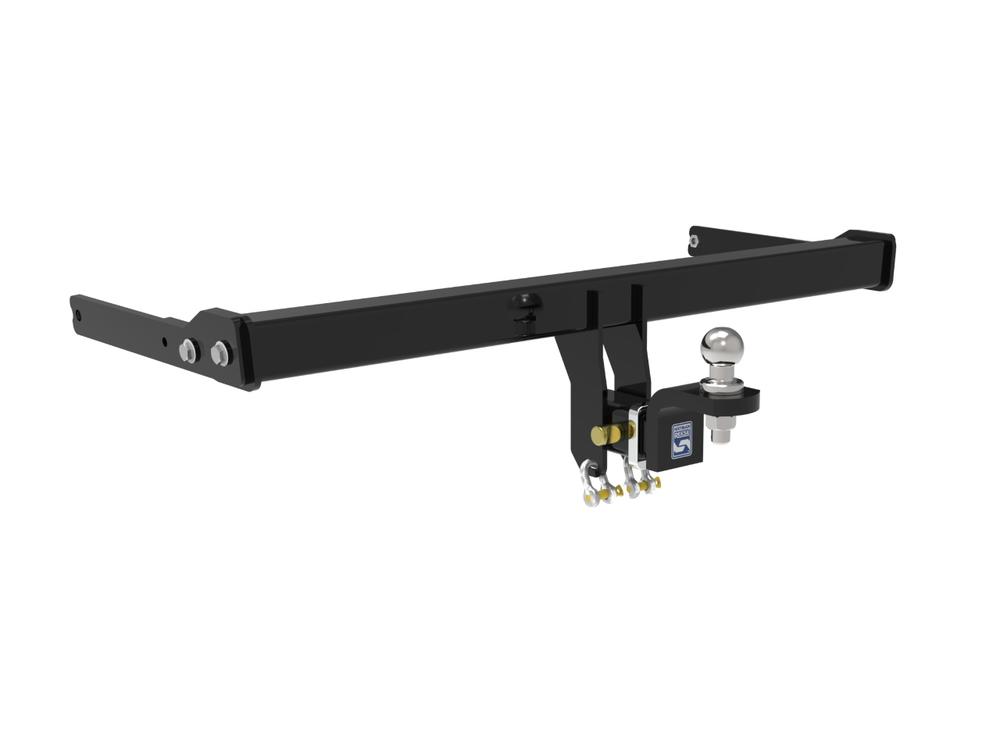

Hayman Reese Towbar to suit Skoda Superb (9-2015 on) & VW Passat (6-2015 on) - 03368RW

03368RW

Low stock! Only 5 left
$899.00
$899.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

Smartcode ECU : WLE70024

With a tow capacity of 2200kg and a ball weight of 90kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 2200kg
Ball Weight 90kg
Bumper Cut Yes
Product Dimensions 110 x 34 x 22.5cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Vehicle coding must be carried out using SmartCODE handset to enable towing functions. Supports OEM towing functionality when coded with SmartCODE handset. Refer to owners manual for exact vehicle changes enabled or disabled when towing.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21148
Fitting Difficulty Specialist Installer
ECU WLE70024
Towing Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset
Wiring Notes Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset. A small number of Skoda variants may not be prewired. Plugs may be missing from rear of vehicle. 04916 may be required. Please contact Hayman Reese technical department.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQFvDQNRMhNsIgbL%2Fj7rPYobUW1fSffXfpNepxcYcGKP%2F
