03442RW

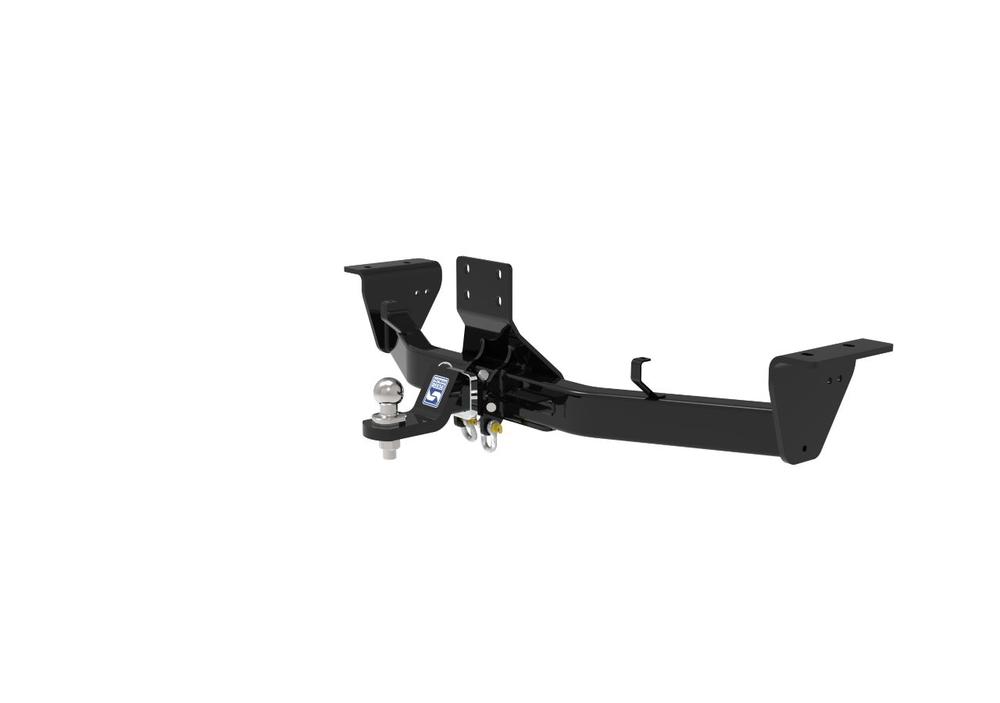

Hayman Reese Towbar to suit Nissan Patrol Y62 Series 1-4 (12-2012 to 8-2019) - 03442RW

Low stock! Only 5 left
$999.00
$999.00
Tax included. Shipping calculated at checkout.

Features

  • 50mm x 50mm slide in and out ball mount
  • Double Powder coated protective fi­nish - Wear and Rust resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Included Parts

  • Fitting instructions
  • All nuts, bolts and hardware
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes ECU no longer required.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21325
Fitting Difficulty Specialist Installer
ECU Not Required
Towing Notes Replaces 02990RW. Suits all Series 1-4 Variants.
Wiring Notes ECU no longer required.
Towbar Installation Time 100 mins
Wiring Installation Time 40 mins



FITTING INSTRUCTIONS

https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQB4fN9e9S01QXAuAm8A3YQd1tByl4QiO6to%2BE%2BPZjGU9

Hayman Reese Towbar to suit Nissan Patrol Y62 Series 1-4 (12-2012 to 8-2019) - 03442RW

$999.00
