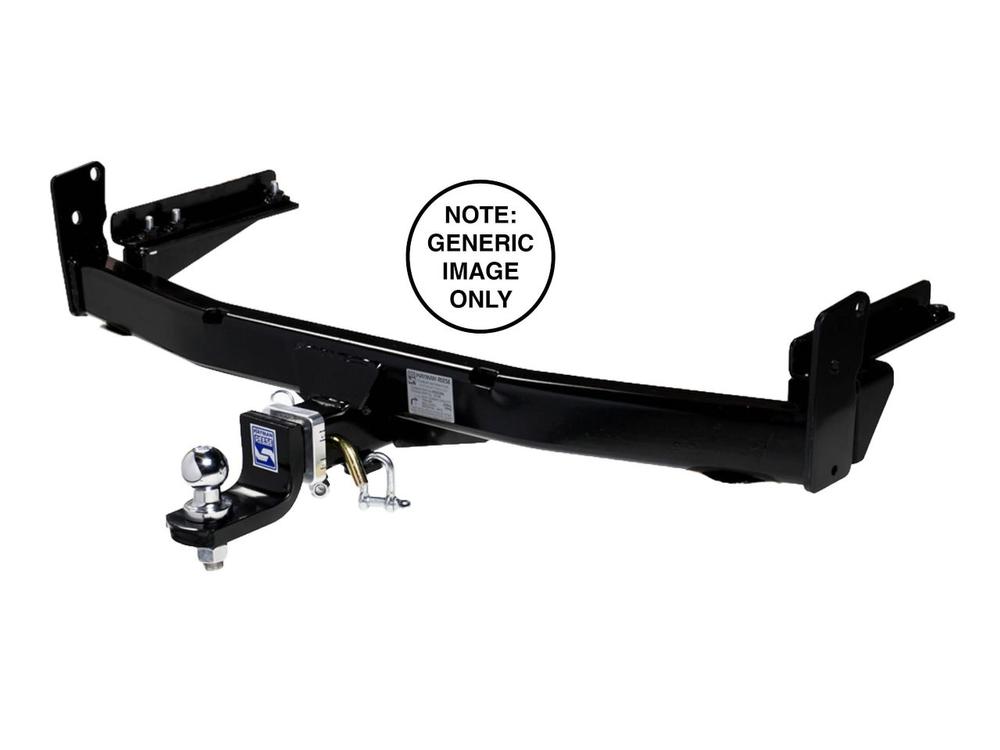

Hayman Reese Towbar to suit Mercedes Sprinter (6-2018 on) - 03313RW

03313RW

Low stock! Only 5 left
$1,299.00
$1,299.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : WLE70015

With a tow capacity of 2000kg and a ball weight of 200kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 200kg
Bumper Cut No
Product Dimensions 110 x 34 x 22.5cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Suits vehicles where no plastic factory rear step fitted. Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21370
Fitting Difficulty Specialist Installer
ECU WLE70015
Towing Notes Suits vehicles where no plastic factory rear step fitted. Inside to inside of chassis measurement 840mm - SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset.
Wiring Notes Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing.
Towbar Installation Time 100 mins
Wiring Installation Time 60 mins
