03188RW

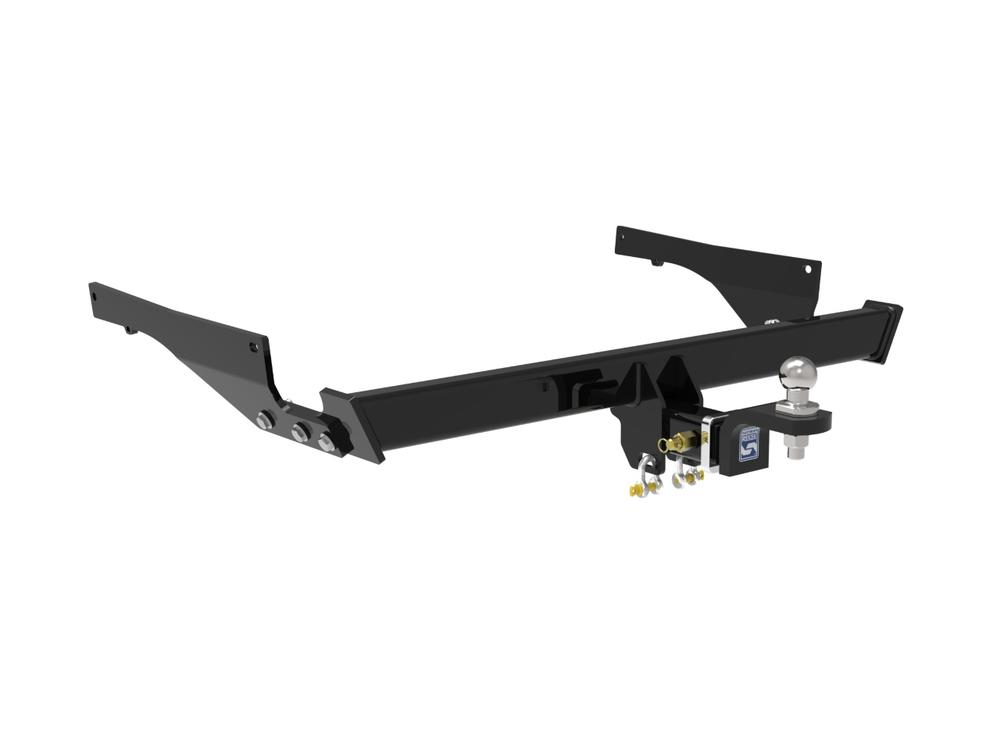

Hayman Reese Towbar to suit Mazda CX-9 (7-2016 on) - 03188RW

Low stock! Only 4 left
$689.00
$689.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

Include optional text to provide more information about this highlight.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : 04826

Check Notes : 04944

With a tow capacity of 2000kg and a ball weight of 150kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 150kg
Bumper Cut Yes
Product Weight 31.2kg
Product Dimensions 115 x 50 x 25cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Tail part #04944 must be used to disable Smart City Brake Support [SCBS] which cannot function when towing Refer fitting instructions as required Disables hands-free power tailgate function for GT and Azami.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21126
Fitting Difficulty Specialist Installer
ECU 04826
Wiring Notes Tail part #04944 must be used to disable Smart City Brake Support [SCBS] which cannot function when towing Refer fitting instructions as required Disables hands-free power tailgate function for GT and Azami.
Towbar Installation Time 70 mins
Wiring Installation Time 40 mins
