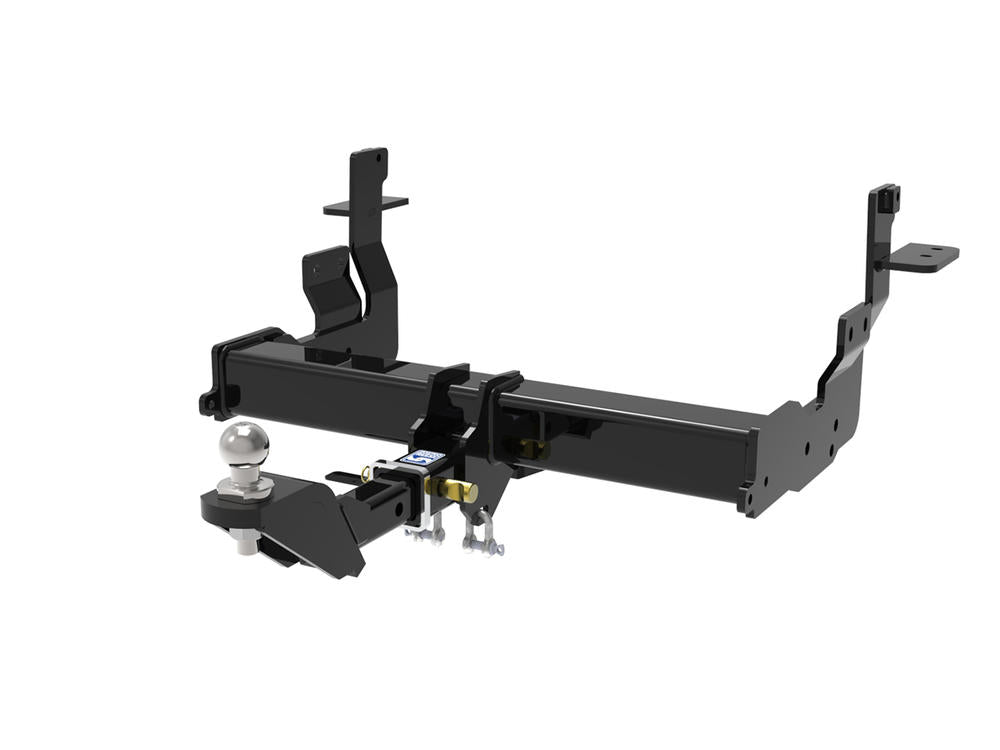

Hayman Reese Towbar to suit LDV T60 (7-2017 to 3-2024) & eT60 (8-2022 to 3-2024) - 03227RW

03227RW

Low stock! Only 5 left
$1,129.00
$1,129.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : 04837

CHECK NOTES : 04943/04941

With a tow capacity of 3000kg and a ball weight of 300kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has an exposed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 3000kg
Ball Weight 300kg
Bumper Cut No
Product Weight 45kg
Product Dimensions 115 x 50 x 25cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Does not fit mega tub variant. Tail 04943 (7 pin normally open) or 04941 (12 pin normally open) must be used to allow vehicle loom to earth and enable trailer signal at plug. Electric Brake Input Location. Blue Wire Near Blue Tail Connector.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21231
Fitting Difficulty Specialist Installer
ECU 04837
Towing Notes Does not fit mega tub variant. The eT60 has Towing and Tow Ball download capacities of 1000kg & 100kg respectively. Please always check your vehicle's weight ratings to ensure compliance.
Wiring Notes Tail 04943 (7 pin normally open) or 04941 (12 pin normally open) must be used to allow vehicle loom to earth and enable trailer signal at plug. Electric Brake Input Location. Blue Wire Near Blue Tail Connector.
Towbar Installation Time 60 mins
Wiring Installation Time 45 mins
