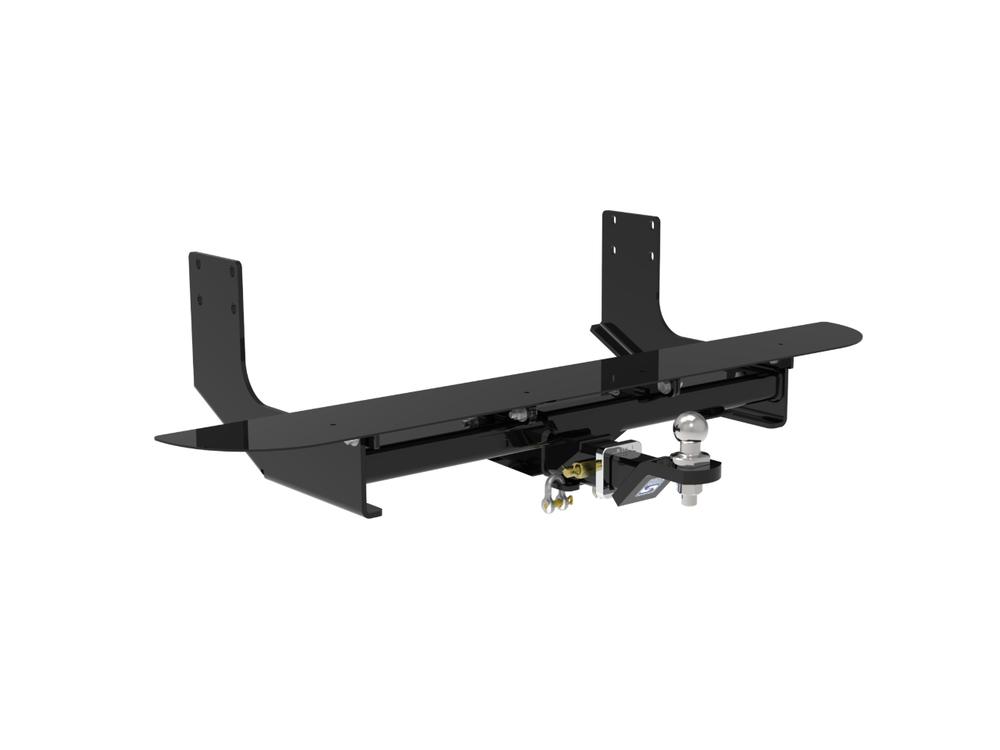

Hayman Reese Towbar to suit Jayco Motorhome MS.22-1, MS.22-2, Mercedes Sprinter (6-2018 on) - 03418RW

03418RW

Low stock! Only 5 left
$1,139.00
$1,139.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : WLE70015

With a tow capacity of 2000kg and a ball weight of 200kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has an exposed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 200kg
Bumper Cut Yes
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Suits vehicles fitted with plastic factory rear step - Hitch lamp protection bars deleted. SmartCODE compatible towbar - Vehicle coding must be completed using SmartCODE handset. Suits Jayco Mercedes Campervans MS22-1 MS22-2 (Conquest/Optimum/All-Terrain.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21161
Fitting Difficulty Specialist Installer
ECU WLE70015
Towing Notes Suits vehicles fitted with plastic factory rear step - Inside to inside of chassis measurement 850mm - Hitch lamp protection bars deleted. SmartCODE compatible towbar - Vehicle coding must be completed using SmartCODE handset. Suits Jayco Mercedes Campervans MS22-1 MS22-2 (Conquest/Optimum/All-Terrain.
Wiring Notes Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset. Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing.
Towbar Installation Time 40 mins
Wiring Installation Time 60 mins
