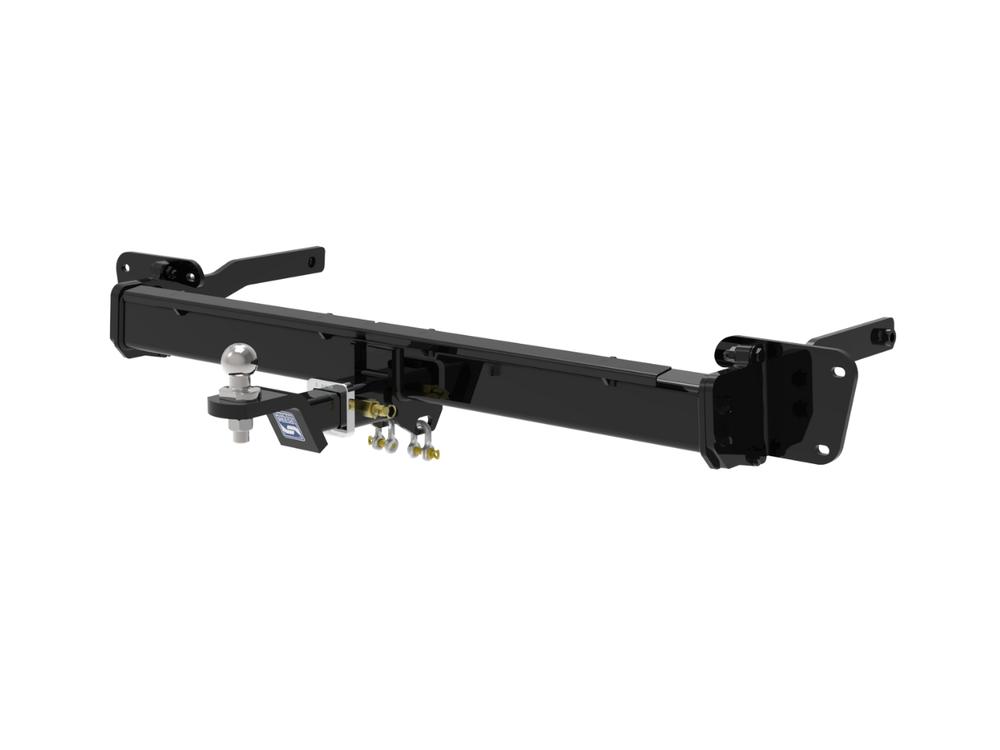

Hayman Reese Towbar to suit Ford Transit Custom AV (8-2023 on) - 03517RW

Low stock! Only 5 left
$919.00
$919.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : WLE70075

With a tow capacity of 2800kg and a ball weight of 280kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. The Towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin.

Specifications

Towbar Rating 2800kg
Ball Weight 280kg
Bumper Cut Yes
Product Weight 40.7kg
Product Dimensions 115 x 22 x 40cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Tail Length 400mm
Colour black
Hitch Type 50mm square hitch receiver
LUG 21231
Fitting Difficulty Specialist Installer
ECU WLE70035
Towing Notes Please refer vehicles owners manual for proper operation and understanding of towing features enabled when coded.
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS tool. Aftermarket (AM) module must be selected. Vehicle E-brake is fused at 15amp under seat.
Towbar Installation Time 90 mins
Wiring Installation Time 30 mins
