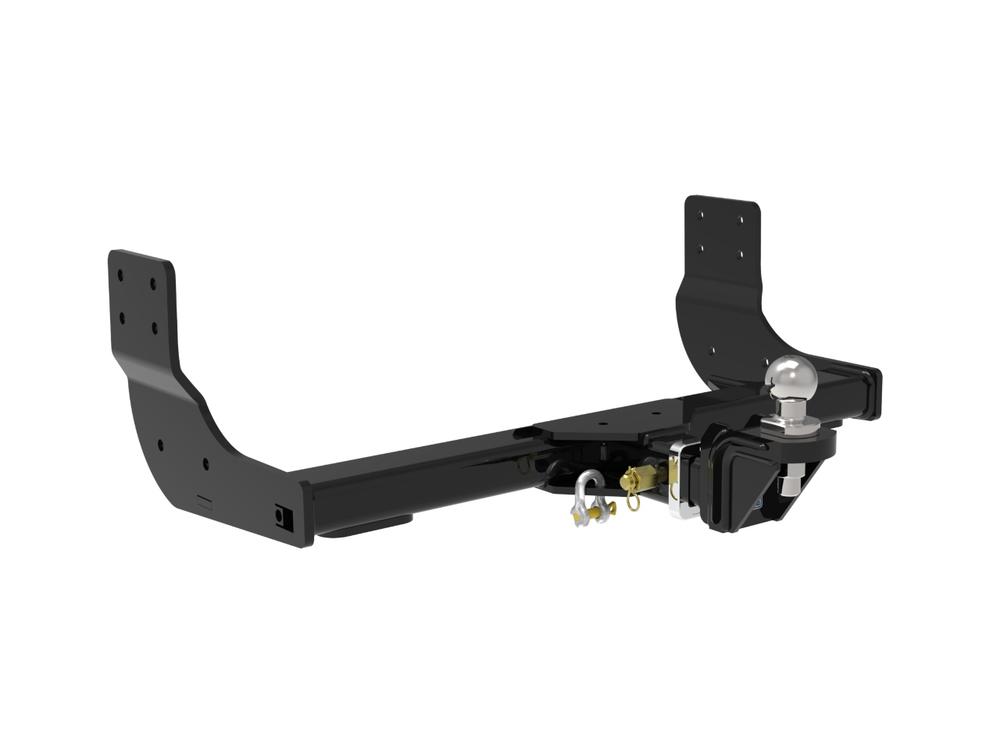

Hayman Reese Towbar to suit Ford Transit Custom (5-2019 to 12-2023) - 03331RW

03331RW

Low stock! Only 4 left
$799.00
$799.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

ECU REQUIRED : WLE70003

With a tow capacity of 2800kg and a ball weight of 280kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 2800kg
Ball Weight 280kg
Bumper Cut No
Product Weight 30.45kg
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset. Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21364
Fitting Difficulty Specialist Installer
ECU WLE70003
Towing Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS Tool. OEM module must be selected as this ECU replicates the OEM part.
Towbar Installation Time 30 mins
Wiring Installation Time 30 mins
