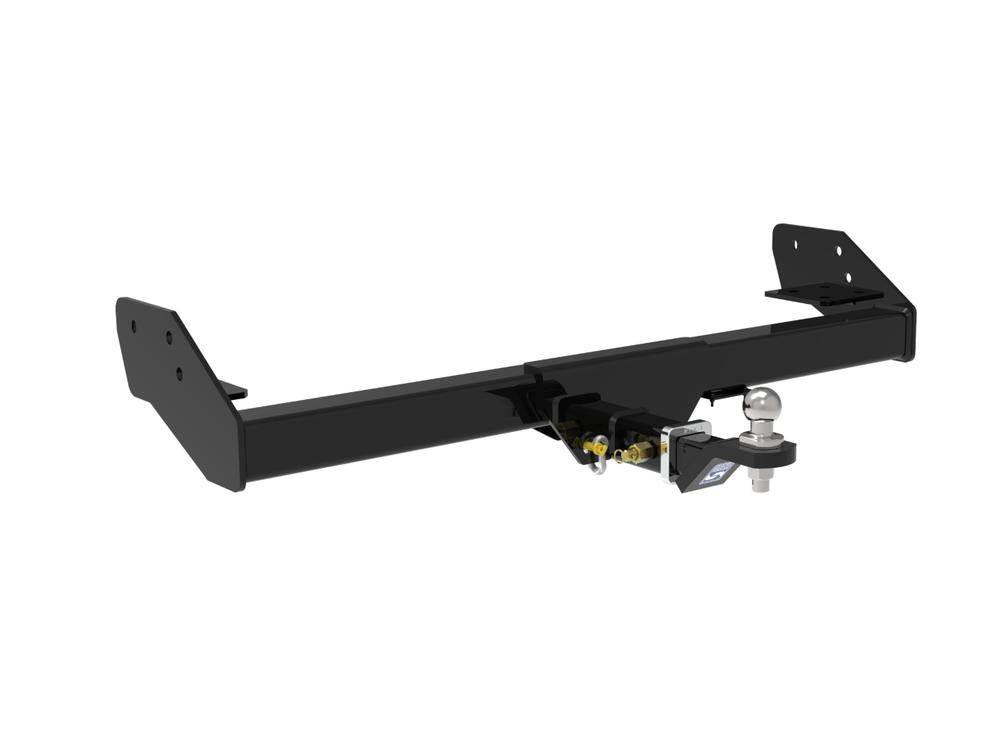

Hayman Reese Towbar to suit Ford Ranger PX III C-C (8-2015 to 5-2022) - 03277RW

03277RW

Low stock! Only 5 left
$899.00
$899.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

Class 4

Smart ECU  : WLE70003

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has an exposed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Vehicle coding must be carried out using SmartCODE handset to enable towing functions. Supports OEM towing functionality when coded with SmartCODE handset. Refer to owners manual for exact vehicle changes enabled or disabled when towing.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21161
Fitting Difficulty Specialist Installer
ECU WLE70003
Towing Notes SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS Tool. OEM module must be selected as this ECU replicates the OEM part.
Towbar Installation Time 60 mins
Wiring Installation Time 15 mins



FITTING INSTRUCTIONS
