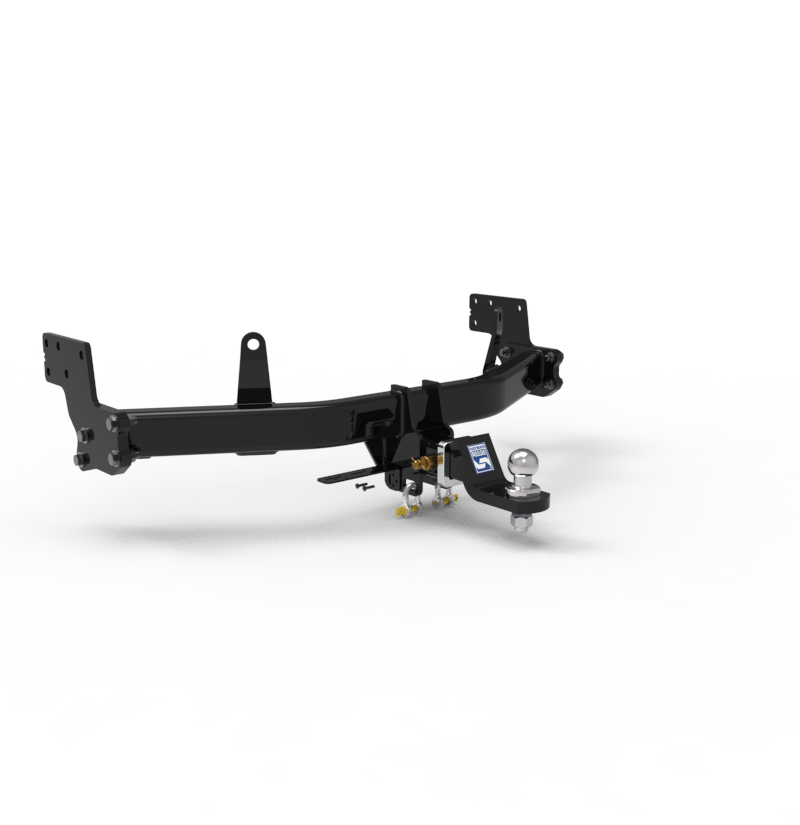

Hayman Reese Towbar to suit Ford Everest MY22 (06-2022 to 10-2024) - 03438RW

Low stock! Only 5 left
$679.00
$679.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : WLE70029

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The Towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles, Smartcode technology and Smart Pin all included.

Specifications

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut Yes
Product Dimensions 115 x 50 x 25cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Notes Does not suit MY25.25 onwards. SmartCODE compatible towbar- Vehicle coding using SmartCODE handset needed to enable towing functions. For vehicles coded within FORD dealer network using FORD IDS tool. When coding, aftermarket AM module must be selected.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21325
Fitting Difficulty Specialist Installer
ECU WLE70029
Towing Notes Does not suit MY25.25 onwards. SmartCODE compatible towbar - Vehicle coding must be carried out using SmartCODE handset to enable towing functions
Wiring Notes For vehicles coded within the FORD dealer network using the FORD IDS tool. When coding, aftermarket AM module must be selected.
Towbar Installation Time 60 mins
Wiring Installation Time 30 mins
