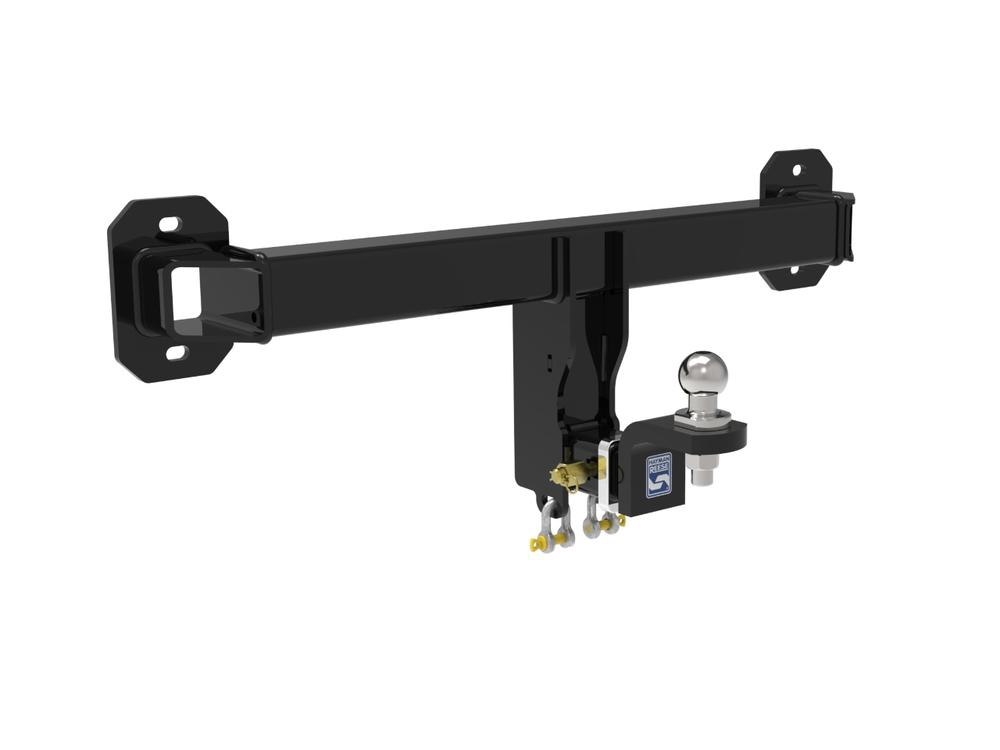

Hayman Reese Towbar to suit BMW X3 (5-2018 to 8-2024) & X4 (5-2018 on) - 03286RW

Low stock! Only 5 left
$1,549.00
$1,549.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : WLE70011

With a tow capacity of 2000kg and a ball weight of 100kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 100kg
Bumper Cut Yes
Product Weight 24.9kg
Product Dimensions 109 x 43 x 21.5cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Standard Hayman Reese Class 4 style hitchbox (Not Vertical Mount). Vehicle Specific WLE70011 ECU must be used. Does not fit X3 M Competition with quad-tip exhausts (supplied exhaust bracket can be modified to fit).
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21148
Fitting Difficulty Specialist Installer
ECU WLE70011
Towing Notes Standard Hayman Reese Class 4 style hitchbox (Not Vertical Mount).
Wiring Notes Vehicle Specific WLE70011 ECU must be used. Does not fit X3 M Competition with quad-tip exhausts (supplied exhaust bracket can be modified to fit).
Towbar Installation Time 145 mins
Wiring Installation Time 60 mins
