02776RW

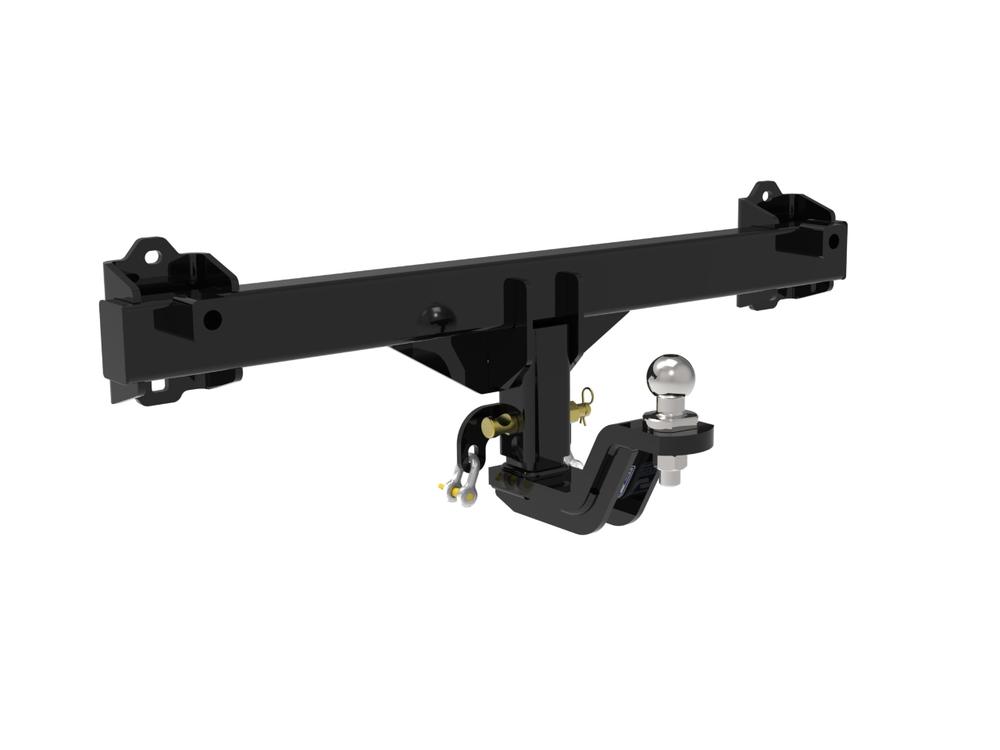

Hayman Reese Towbar to suit BMW X3 (3-2011 to 8-2017) - 02776RW

Low stock! Only 5 left
$1,299.00
$1,299.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

Include optional text to provide more information about this highlight.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : 04826/04828

ECU #04828 2010-12 / #04826 2012-On. Factory RPA cannot be overridden but can be disabled through a switch on the vehicle dash.

With a tow capacity of 2000kg and a ball weight of 200kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 200kg
Bumper Cut No
Product Weight 20kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Class 4 Style vertical hitch providing class 2 style flat tongue ball mount. Not Compatible with Weight Distribution Systems. ECU #04828 2010-12 / #04826 2012-On. Factory RPA cannot be overridden but can be disabled through a switch on the vehicle dash.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 07737
Fitting Difficulty Specialist Installer
ECU 04828/04826
Towing Notes Vertical hitch receiver fitment. Class 4 Style vertical hitch providing class 2 style flat tongue ball mount. Not Compatible with Weight Distribution Systems.
Wiring Notes ECU #04828 2010-2012 / #04826 2012-On. Note: factory RPA cannot be overridden. However it can be disabled through a switch on the vehicle dash.
Towbar Installation Time 90 mins
Wiring Installation Time 30 mins
