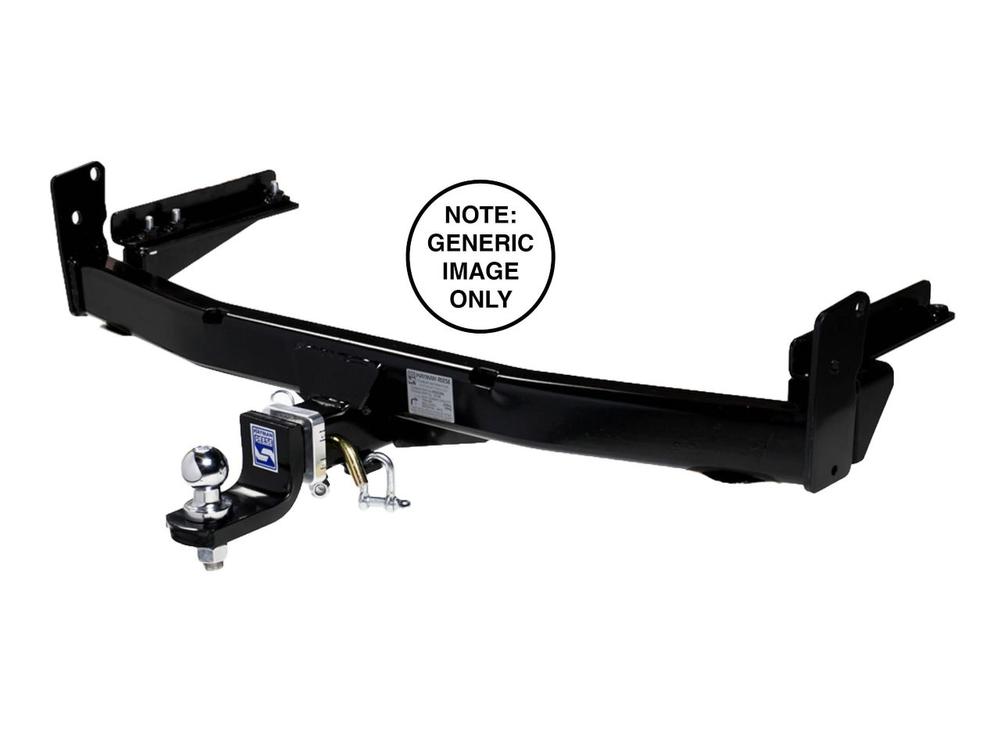

Hayman Reese Towbar to suit BMW X1 (8-2015 to 7-2022) - 03169RW

03169RW

Low stock! Only 5 left
$1,429.00
$1,429.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

ECU REQUIRED : 04838

With a tow capacity of 2000kg and a ball weight of 80kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 80kg
Bumper Cut No
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Class 4 Style vertical hitch providing class 2 style flat TBM. Not Compatible with Weight Dist. Systems. If taillight connectors differ from trailer patch, connectors will need to be removed. Patch will then need to be soldered/spliced to harness.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG GT279
Fitting Difficulty Specialist Installer
ECU 04838
Towing Notes Class 4 Vertical hitch. Class 4 Style vertical hitch providing class 2 style flat tongue ball mount. Not Compatible with Weight Distribution Systems
Wiring Notes If taillight connectors differ from trailer patch, trailer patch connectors will be required to be removed. Patch will then need to be soldered/spliced to vehicle harness. Wiring does not suit July 2022 models onwards
Towbar Installation Time 60 mins
Wiring Installation Time 40 mins
