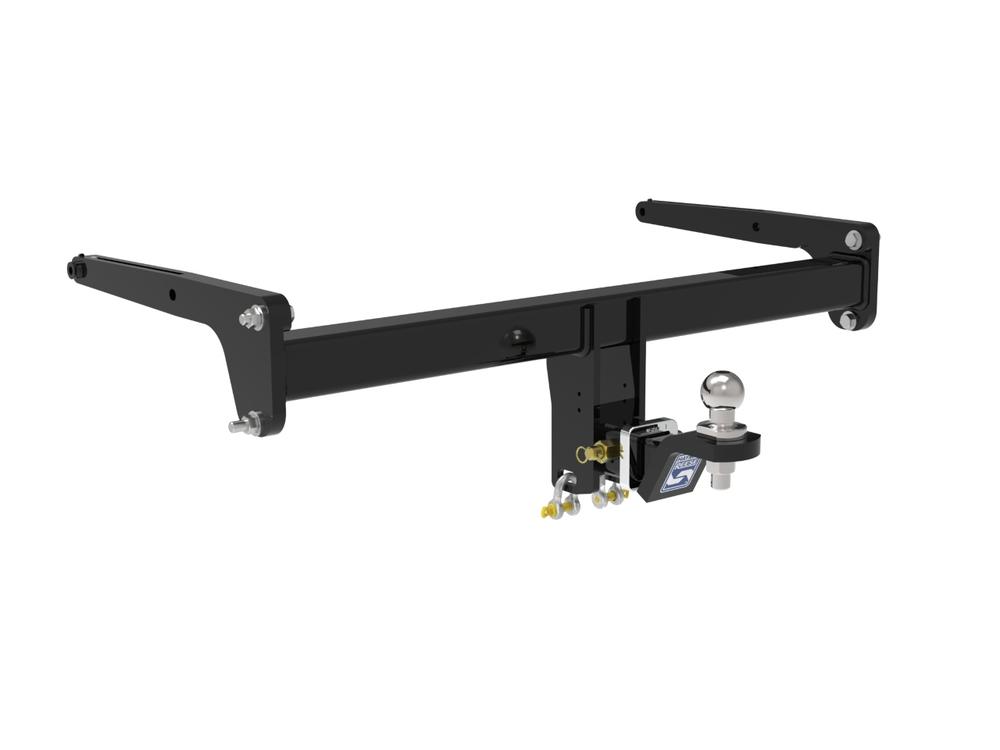

Hayman Reese Towbar to suit Audi Q5 (2-2017 to 9-2020) - 03225RW

03225RW

Low stock! Only 5 left
$1,299.00
$1,299.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

Smart ECU : 04828

With a tow capacity of 2000kg and a ball weight of 200kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and doesn't require a bumper cut. The towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin all included.

Specifications

Towbar Rating 2000kg
Ball Weight 200kg
Bumper Cut No
Product Weight 28.3kg
Product Dimensions 110 x 34 x 22.5cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Towbar fits SQ5 however bumper cut not confirmed.
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21201
Fitting Difficulty Specialist Installer
ECU 04828
Towing Notes Updated SmartCODE 03448RW now available for 9/2020 onwards. Towbar fits SQ5 however, bumper cut not confirmed.
Towbar Installation Time 90 mins
Wiring Installation Time 60 mins
