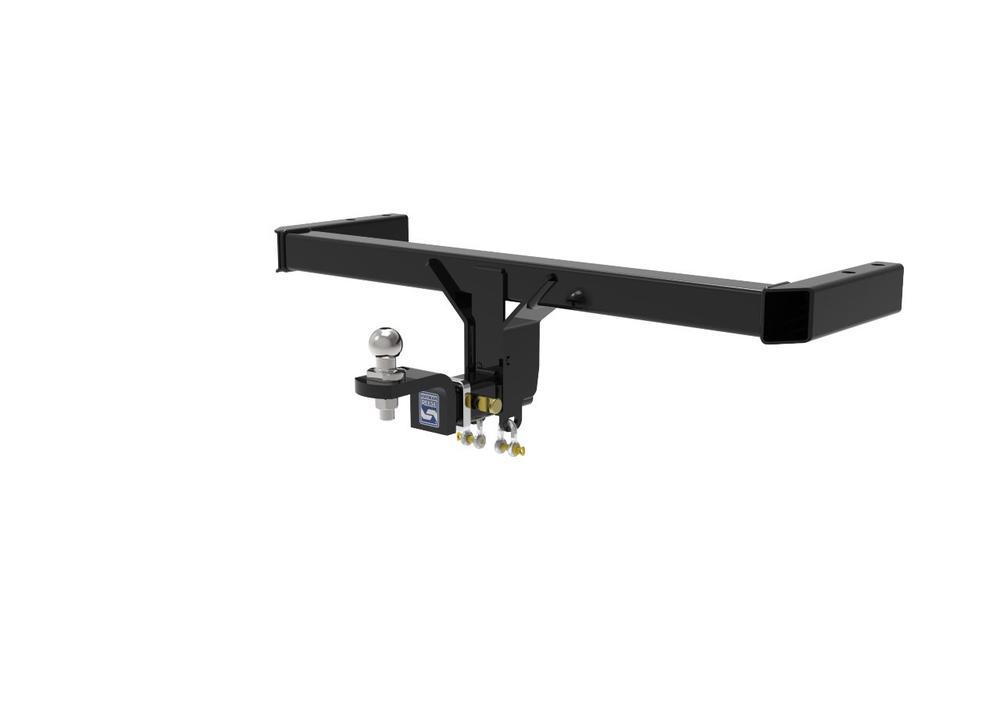

Hayman Reese Towbar to suit Audi Q5 (2-2017 on) - 03487RW

Low stock! Only 5 left
$1,099.00
$1,099.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Features

  • 50mm x 50mm slide in and out ball mount
  • Powder coated protective fi­nish - Wear and Rust Resistance.
  • Hayman Reese Limited Lifetime Warranty Tested to the Australian Standard AS/NZS4177 in a NATA accredited laboratory.

Parts Included

  • Fitting instructions
  • All nuts, bolts and Towbar
  • Chrome finish tow ball
  • Rated D shackles.
  • Hayman Reese Tongue/Ball Mount

Please Note

  • Towbars may require drilling or cutting for installation.
  • ECUs are sold separately.
  • Towing capacity varies by vehicle so check your owner’s manual.
  • Support is available via phone or email for any questions.

CLASS 4

SMART ECU : WLE70031

With a tow capacity of 2400kg and a ball weight of 240kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. The Towbar has a removable Towball mount (TBM) with 50mm towball, rated D-shackles and Smart Pin.

Specifications

Towbar Rating 2400kg
Ball Weight 240kg
Bumper Cut Yes
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset. Vehicle operators must refer to owners manual to determine exact vehicle changes enabled or disabled when towing.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21126
Fitting Difficulty Specialist Installer
ECU WLE70031
Wiring Notes - Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset. Vehicle operators must refer to owners manual to determine exact vehicle changes enabled or disabled when towing.
Towbar Installation Time 40 mins
Wiring Installation Time 30 mins
Hayman Reese Towbar to suit Audi Q5 (2-2017 on) - 03487RW

$1,099.00
